OEM#: P56S17TRS40002A2ANew OEM Original Outright

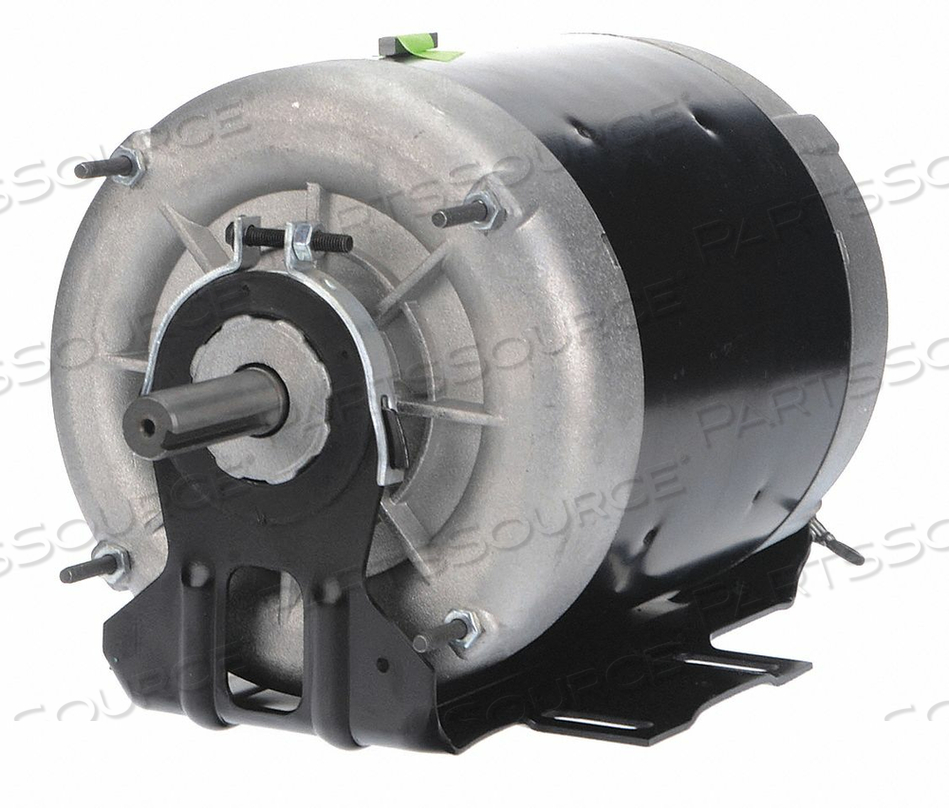

MOTOR SPLIT PH 1/2 HP 1725 115V 56 TEAO by Regal Beloit America, Inc. (Century Electric Motors)

Your price:
$477.57 eachReady to ship
HomeRegal Beloit America, Inc. (Century Electric Motors)P56S17TRS40002A2A
MOTOR SPLIT PH 1/2 HP 1725 115V 56 TEAO by Regal Beloit America, Inc. (Century Electric Motors)
MOTOR SPLIT PH 1/2 HP 1725 115V 56 TEAO by Regal Beloit America, Inc. (Century Electric Motors)

OEM#: P56S17TRS40002A2A
MOTOR SPLIT PH 1/2 HP 1725 115V 56 TEAO by Regal Beloit America, Inc. (Century Electric Motors)

New OEM Original Outright
Your price:
$477.57 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: P56S17TRS40002A2A Key Specs
Item
MOTOR SPLIT PH 1/2 HP 1725 115V 56 TEAO
OEM
Regal Beloit America, Inc. (Century Electric Motors)
OEM #
P56S17TRS40002A2A
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
Blowers, Fans and Air Circulators
Body Diameter
6-1/2 in
Bolt Circle Diameter
5-13/16 in
Capacitor Required
No
Country of Origin
Mexico
Duty
Continuous
Frame
56
Full Load Amps
7.1
HP
1/2
Hz
60
Includes
Resilient Base
Ins. Class
B
Length Less Shaft
9-1/2 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Ball
Motor Design
Split-Phase
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Position
All Angle
Motor Mounting Type
Cradle Base
Motor Service Factor
1
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Manual
Mounting Stud Location
Shaft End
Mounting Stud Pattern
4-1/8 in x 4-1/8 in
Nameplate RPM
1725
Nominal Efficiency
70 %
Number of Speeds
1
Overall Length
11-1/2 in
Phase
1
Resilient Ring Diameter
2-1/2 in
Ring to Ring Center
9-3/16 in
Shaft Diameter
5/8 in
Shaft Length
1-7/8 in
Standards
CSA Certified, UL Recognized
Stud Size
#10-32 NF-2A x 5/8 in
Voltage
115
Voltage Compatibility
115, 120
