OEM#: FDL6001ANew OEM Original Outright

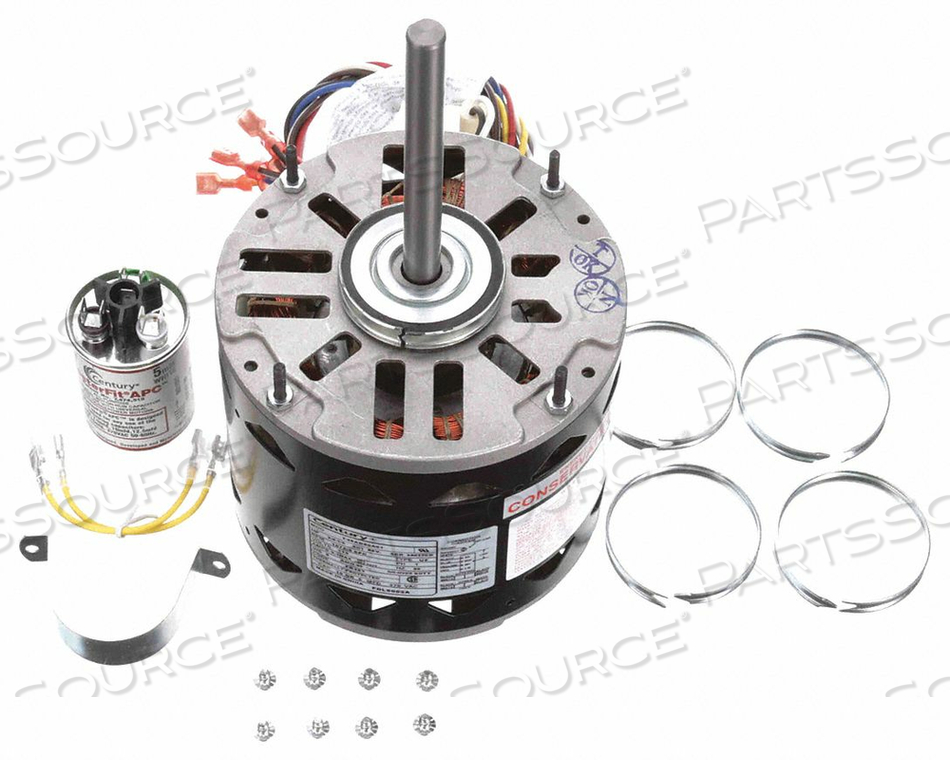

MOTOR PSC 1/2 HP 1075 RPM 115V 48Y OPEN by Regal Beloit America, Inc. (Century Electric Motors)

Your price:
$186.87 eachReady to ship
HomeRegal Beloit America, Inc. (Century Electric Motors)FDL6001A
MOTOR PSC 1/2 HP 1075 RPM 115V 48Y OPEN by Regal Beloit America, Inc. (Century Electric Motors)
MOTOR PSC 1/2 HP 1075 RPM 115V 48Y OPEN by Regal Beloit America, Inc. (Century Electric Motors)

OEM#: FDL6001A
MOTOR PSC 1/2 HP 1075 RPM 115V 48Y OPEN by Regal Beloit America, Inc. (Century Electric Motors)

New OEM Original Outright
Your price:
$186.87 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: FDL6001A Key Specs
Item
MOTOR PSC 1/2 HP 1075 RPM 115V 48Y OPEN
OEM
Regal Beloit America, Inc. (Century Electric Motors)
OEM #
FDL6001A
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
Blower Motors In Residential and Light Commercial HVAC Systems, Fasco, Genteq, Marathon, Protech Fan, Replaces Emerson
Body Diameter
5-3/4 in
Bolt Circle Diameter
5-3/16 in
Capacitor Required
Included
Duty
Continuous
Frame
48Y
Full Load Amps
7
HP
1/2 to 1/6
Hz
60
Includes
Predrilled Holes In Shell for Rheem Mounting, Reversing Plug
Ins. Class
B
Length Less Shaft
5-7/8 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Sleeve
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
Motor Mounting Position
Horizontal
Motor Mounting Type
Stud
Motor Service Factor
1
Motor Shaft Design
Flat
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Auto
Mounting Stud Length
5/8 in
Mounting Stud Location
Shaft End
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Nameplate RPM
1075
Number of Speeds
4
Overall Length
10-5/16 in
Phase
1
Resilient Ring Diameter
2-1/4 in
Ring to Ring Center
5-7/16 in
Shaft Diameter
1/2 in
Shaft Length
4-1/2 in
Standards
CSA Certified, UL Recognized
Stud Size
#8-32
Voltage
115
Voltage Compatibility
115, 115/208-230, 115/230, 120, 120/240
