OEM#: B2854V1New OEM Original Outright

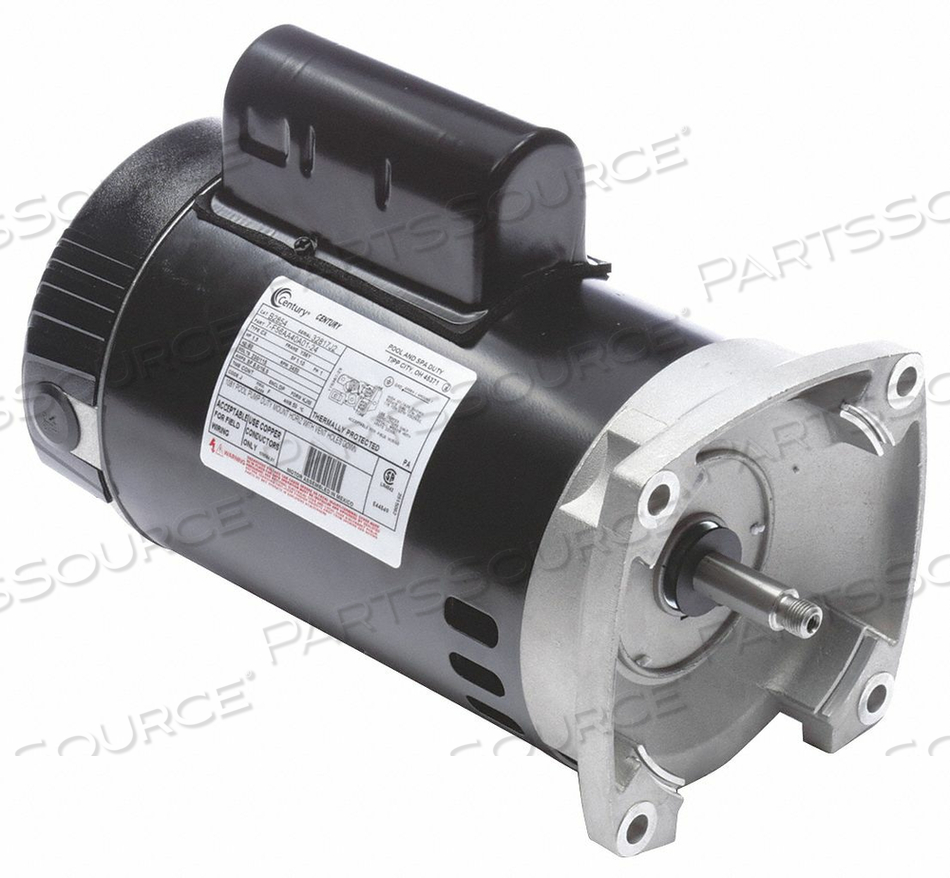

MOTOR 1 1/2 HP 3 450 RPM 56Y 115/230V by Regal Beloit America, Inc. (Century Electric Motors)
Your price:
$546.90 each
OEM#: B2854V1MOTOR 1 1/2 HP 3 450 RPM 56Y 115/230V by Regal Beloit America, Inc. (Century Electric Motors)
New OEM Original Outright
Your price:
$546.90 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: B2854V1 Key Specs
Item
MOTOR 1 1/2 HP 3 450 RPM 56Y 115/230V
OEM
Regal Beloit America, Inc. (Century Electric Motors)
OEM #
B2854V1
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Ambient Temperature
50 Degrees C
Country of Origin
China
Finish
Black
Frame
56Y
Full Load Amps
16/8
HP
1-1/2
Hz
60
Ins. Class
F
Motor Application
Pump
Motor Bearings
Ball
Motor Design
Permanent Split Capacitor
Motor Efficiency Group
Standard Efficient
Motor Enclosure Design
Open Dripproof
Motor Flange Material
Aluminum
Motor Mounting Type
Face
Motor Service Factor
1.1
Motor Shaft Rotation
CCWSE
Motor Sub Application
Pool and Spa Pump
Motor Thermal Protection
Auto
Nameplate RPM
3450
Phase
1
RPM Range
3001-3600
Shaft
Threaded 1/2-20 UNF-2A RH (External) and 1/4-20 UNC-2B LH (Internal)
Shaft Diameter
5/8 in
Shaft Length
7/16 in
Shaft Material
303 Stainless Steel
Standards
CSA Certified, UL Recognized
Voltage
115/230
Voltage Compatibility
115, 115/230, 120, 120/240, 230, 240
