OEM#: DL1076New OEM Original Outright

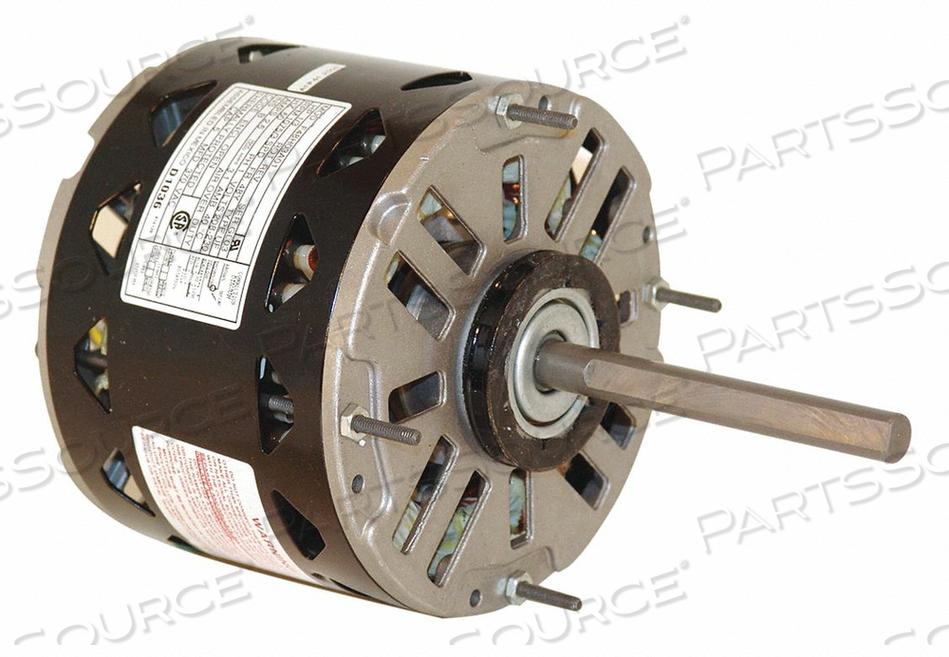

MOTOR PSC 3/4 HP 1075 RPM 115V 48Y OAO by Regal Beloit America, Inc. (Century Electric Motors)
Your price:
$243.98 each
OEM#: DL1076MOTOR PSC 3/4 HP 1075 RPM 115V 48Y OAO by Regal Beloit America, Inc. (Century Electric Motors)
New OEM Original Outright
Your price:
$243.98 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: DL1076 Key Specs
Item
MOTOR PSC 3/4 HP 1075 RPM 115V 48Y OAO
OEM
Regal Beloit America, Inc. (Century Electric Motors)
OEM #
DL1076
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
Blowers, Fans and Air Circulators
Body Diameter
5-5/8 in
Capacitor Required
2MDV9
Duty
Continuous
Frame
48Y
Full Load Amps
8.9
HP
3/4
Hz
60
Ins. Class
B
Length Less Shaft
6-5/8 in
Max Ambient Temperature
50 Degrees C
Motor Application
HVAC/R
Motor Bearings
Sleeve
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
Motor Mounting Position
All Angle
Motor Mounting Type
Stud
Motor Service Factor
1
Motor Shaft Design
Flat
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Auto
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Nameplate RPM
1075
Number of Speeds
3
Phase
1
Resilient Ring Diameter
2-1/4 in
Ring to Ring Center
6-3/16 in
Shaft Diameter
1/2 in
Shaft Length
4 in
Standards
UL Recognized, CSA Certified
Stud Size
#8-32
Voltage
115
Voltage Compatibility
115, 115/208-230, 115/230, 120, 120/240
