OEM#: ARB2034L6New OEM Original Outright

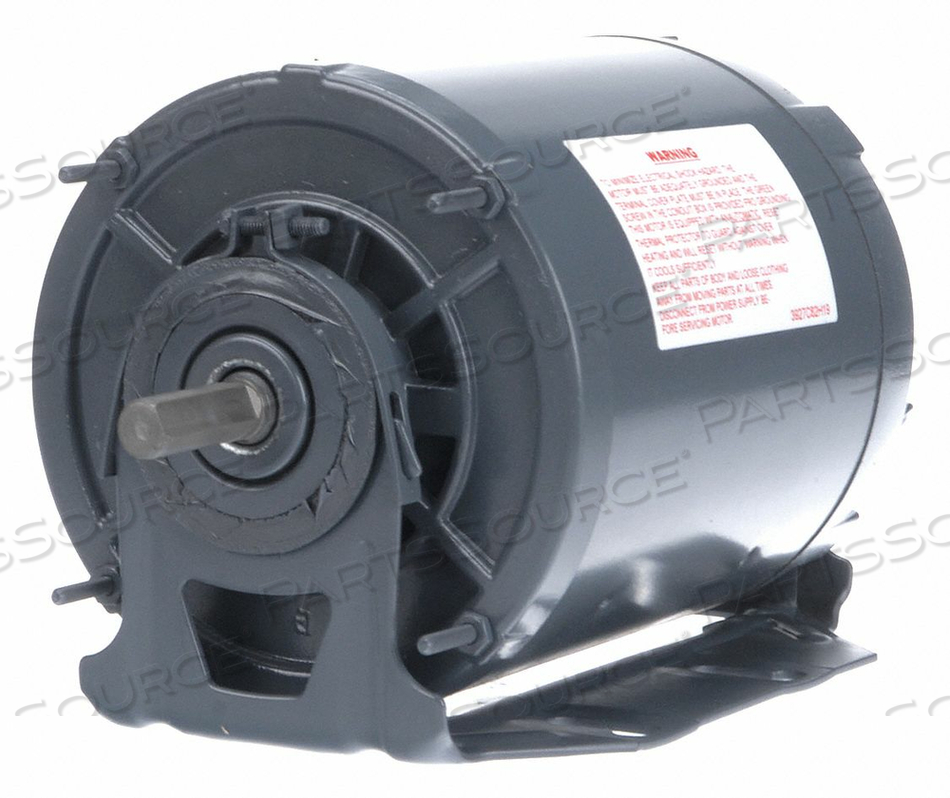

MOTOR SP PH 1/3 HP 1725 115/208-230V 48Y by Regal Beloit America, Inc. (Century Electric Motors)

Your price:
$413.94 eachReady to ship
HomeRegal Beloit America, Inc. (Century Electric Motors)ARB2034L6
MOTOR SP PH 1/3 HP 1725 115/208-230V 48Y by Regal Beloit America, Inc. (Century Electric Motors)
MOTOR SP PH 1/3 HP 1725 115/208-230V 48Y by Regal Beloit America, Inc. (Century Electric Motors)

OEM#: ARB2034L6
MOTOR SP PH 1/3 HP 1725 115/208-230V 48Y by Regal Beloit America, Inc. (Century Electric Motors)

New OEM Original Outright
Your price:
$413.94 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: ARB2034L6 Key Specs
Item
MOTOR SP PH 1/3 HP 1725 115/208-230V 48Y
OEM
Regal Beloit America, Inc. (Century Electric Motors)
OEM #
ARB2034L6
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
Blowers, Fans and Air Circulators
Body Diameter
5-5/8 in
Bolt Circle Diameter
5-3/16 in
Capacitor Required
No
Duty
Continuous
Frame
48Y
Full Load Amps
4.9/2.3-2.5
HP
1/3
Hz
60
Ins. Class
B
Length Less Shaft
8-1/4 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Ball
Motor Design
Split-Phase
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Position
Horizontal
Motor Mounting Type
Cradle Base
Motor Service Factor
1
Motor Shaft Design
Flat
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Auto
Mounting Stud Length
3/4 in
Mounting Stud Location
Shaft End
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Nameplate RPM
1725
Number of Speeds
1
Overall Length
9-13/16 in
Phase
1
Resilient Ring Diameter
2-1/2 in
Ring to Ring Center
7-3/4 in
Shaft Diameter
1/2 in
Shaft Length
1-1/2 in
Standards
UL Recognized, CSA Certified
Stud Size
#8-32
Voltage
115/208-230
Voltage Compatibility
115, 115/208-230, 115/230, 120, 120/240, 208, 208-230, 208-240, 230, 240
