OEM#: ARB2034L3New OEM Original Outright

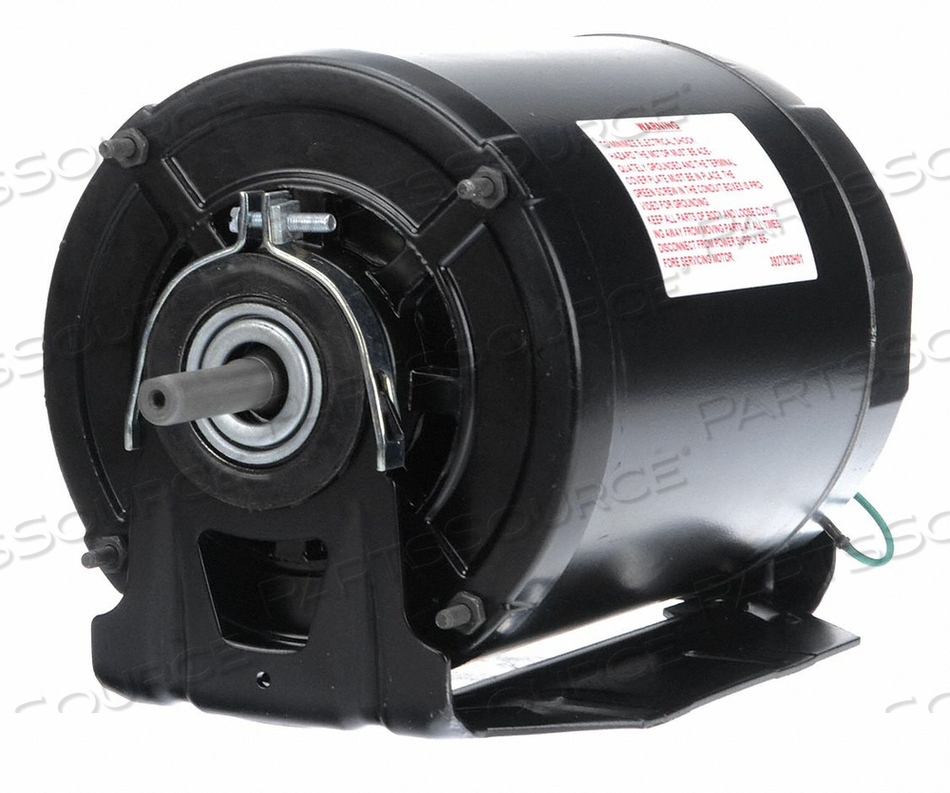

MOTOR SPLIT PH 1/3 HP 1725 115V 56Z TEAO by Regal Beloit America, Inc. (Century Electric Motors)

Your price:
$363.11 each
$412.44 Savings: $49.33 (12%)
Ready to ship
HomeRegal Beloit America, Inc. (Century Electric Motors)ARB2034L3
MOTOR SPLIT PH 1/3 HP 1725 115V 56Z TEAO by Regal Beloit America, Inc. (Century Electric Motors)
MOTOR SPLIT PH 1/3 HP 1725 115V 56Z TEAO by Regal Beloit America, Inc. (Century Electric Motors)

OEM#: ARB2034L3
MOTOR SPLIT PH 1/3 HP 1725 115V 56Z TEAO by Regal Beloit America, Inc. (Century Electric Motors)

New OEM Original Outright
Your price:
$363.11 each
$412.44 Savings: $49.33 (12%)
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: ARB2034L3 Key Specs
Item
MOTOR SPLIT PH 1/3 HP 1725 115V 56Z TEAO
OEM
Regal Beloit America, Inc. (Century Electric Motors)
OEM #
ARB2034L3
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
Blowers, Fans and Air Circulators
Body Diameter
6-1/2 in
Bolt Circle Diameter
5-13/16 in
Capacitor Required
No
Duty
Continuous
Frame
56Z
Full Load Amps
5.6/3.2
HP
1/3, 1/9
Hz
60
Includes
Key Adapter to 5/8 in Shaft, Resilient Base
Ins. Class
B
Length Less Shaft
9-3/8 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Ball
Motor Design
Split-Phase
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Position
Horizontal
Motor Mounting Type
Cradle Base
Motor Service Factor
1
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
None
Mounting Stud Length
1/2 in
Mounting Stud Location
Shaft End
Mounting Stud Pattern
4-1/8 in x 4-1/8 in
Nameplate RPM
1725/1140
Number of Speeds
2
Overall Length
11 in
Phase
1
Resilient Ring Diameter
2-1/2 in
Ring to Ring Center
9 in
Shaft Diameter
1/2 in
Shaft Length
1-5/8 in
Standards
CSA Certified (LR43341), UL Recognized
Stud Size
#10-32
Voltage
115
Voltage Compatibility
115, 115/208-230, 115/230, 120, 120/240
