OEM#: 889ANew OEM Original Outright

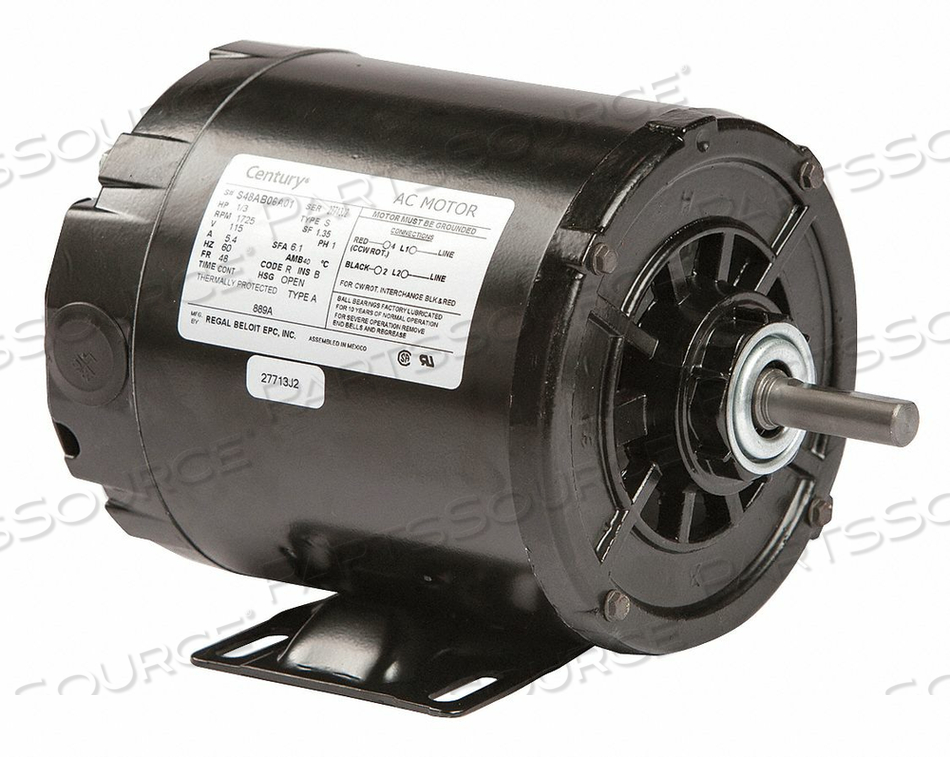

MOTOR SPLIT PH 1/3 HP 1725 115V 48 ODP by Regal Beloit America, Inc. (Century Electric Motors)

Your price:
$419.66 eachReady to ship
HomeRegal Beloit America, Inc. (Century Electric Motors)889A
MOTOR SPLIT PH 1/3 HP 1725 115V 48 ODP by Regal Beloit America, Inc. (Century Electric Motors)
MOTOR SPLIT PH 1/3 HP 1725 115V 48 ODP by Regal Beloit America, Inc. (Century Electric Motors)

OEM#: 889A
MOTOR SPLIT PH 1/3 HP 1725 115V 48 ODP by Regal Beloit America, Inc. (Century Electric Motors)

New OEM Original Outright
Your price:
$419.66 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 889A Key Specs
Item
MOTOR SPLIT PH 1/3 HP 1725 115V 48 ODP
OEM
Regal Beloit America, Inc. (Century Electric Motors)
OEM #
889A
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Body Diameter
5-5/8 in
Duty
Continuous
Frame
48
Full Load Amps
6.1
HP
1/3
Hz
60
Ins. Class
B
Length Less Shaft
8 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Ball
Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Rigid Base
Motor Service Factor
1.35
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Belt Drive Fan/Blower
Motor Thermal Protection
Auto
Nameplate RPM
1725
Number of Speeds
1
Overall Length
9-1/2 in
Phase
1
Shaft Diameter
1/2 in
Shaft Length
1-1/2 in
Standards
UL Recognized (E46412/E44549), CSA Certified (LR43341/LR4642)
Voltage
115
Voltage Compatibility
115, 115/208-230, 115/230, 120, 120/240
