OEM#: 731ANew OEM Original Outright

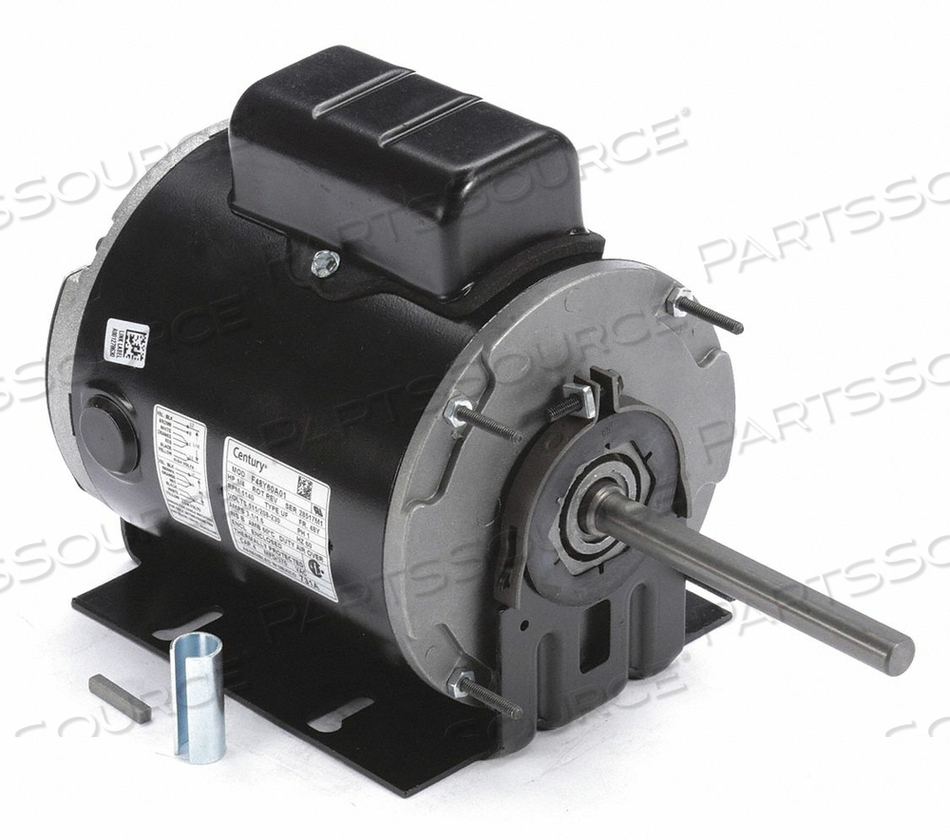

UNIT HTR MOTOR 1/4 1140 115/208-230 48Y by Regal Beloit America, Inc. (Century Electric Motors)

Your price:
$498.98 eachReady to ship
HomeRegal Beloit America, Inc. (Century Electric Motors)731A
UNIT HTR MOTOR 1/4 1140 115/208-230 48Y by Regal Beloit America, Inc. (Century Electric Motors)
UNIT HTR MOTOR 1/4 1140 115/208-230 48Y by Regal Beloit America, Inc. (Century Electric Motors)

OEM#: 731A
UNIT HTR MOTOR 1/4 1140 115/208-230 48Y by Regal Beloit America, Inc. (Century Electric Motors)

New OEM Original Outright
Your price:
$498.98 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 731A Key Specs
Item
UNIT HTR MOTOR 1/4 1140 115/208-230 48Y
OEM
Regal Beloit America, Inc. (Century Electric Motors)
OEM #
731A
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
Dirty, Noncombustible Environments, Unit Heaters and Other Shaft-mounted Fan and Blower Equipment in Dusty
Body Diameter
5-5/8 in
Country of Origin
Mexico
Duty
Continuous
Frame
48Y
Full Load Amps
3.1/1.6-1.6
HP
1/4 in
Hz
60
Includes
4MFD 370 V AC Capacitor
Ins. Class
B
Length Less Shaft
7-1/4 in
Max Ambient Temperature
60 Degrees C
Motor Application
HVAC/R
Motor Bearings
Ball
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Cradle Base
Motor Service Factor
1
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Unit Heater
Motor Thermal Protection
Auto
Mounting Stud Pattern
3-5/8 in x 3-5/8 in
Nameplate RPM
1140
Number of Speeds
1
Overall Length
12-3/8 in
Phase
1
Ring Diameter
2-1/4 in
Ring to Ring Center
6-7/8 in
Shaft Diameter
1/2 in
Shaft Length
4-9/16 in
Standards
UL Recognized (E46412/E49807), CSA Certified (LR43341/LR12645)
Voltage
115/208-230
Voltage Compatibility
115, 115/208-230, 115/230, 120, 120/240, 208, 208-230, 208-240, 230, 240
