OEM#: 8040G022New OEM Original Outright

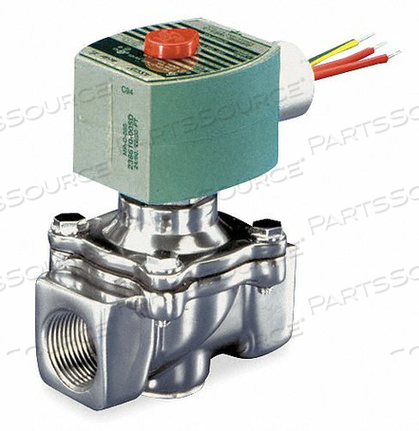

SOLENOID VALVE 2-WAY/2-POSITION NC FUEL by Red-Hat

Your price:
$278.56 eachReady to ship
HomeRed-Hat8040G022
SOLENOID VALVE 2-WAY/2-POSITION NC FUEL by Red-Hat
SOLENOID VALVE 2-WAY/2-POSITION NC FUEL by Red-Hat

OEM#: 8040G022
SOLENOID VALVE 2-WAY/2-POSITION NC FUEL by Red-Hat

New OEM Original Outright
Your price:
$278.56 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 8040G022 Key Specs
Item
SOLENOID VALVE 2-WAY/2-POSITION NC FUEL
OEM
Red-Hat
OEM #
8040G022
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Ambient Temperature Range
-40 Degrees to 125 Degrees F
Application
For Gas Pilot or Main Control of Commercial and Industrial Gas Burners
Approvals, Certifications & Standards
CSA for Safety Shutoff, FM, UL
BTU/h
291,000
Center Line Pipe Center Size
3-7/16 in
Coefficient of Volume
5.4
Coil Enclosure
General Purpose No Junction Box and Watertight
Coil Insulation Class
F
Country of Origin
Mexico
Electrical Connections
18 in Leads
Environmental Rating - Valves
Indoor, Outdoor
Hz
50/60
Maximum Fluid Temperature
125 Degrees F
Maximum Operating Pressure Differential
2 psi
Maximum Operating Pressure Differential (Air/Inert Gas)
2 psi
Maximum Operating Pressure Differential (Water)
2 psi
Media - Valves
Fuel Gas
Minimum Operating Pressure Differential
0 psi
NEMA Rating
1, 2, 3, 3S, 4, 4X
Orifice Diameter
3/4 in
Overall Height
4-1/16 in
Overall Length
2-3/4 in
Overall Width
2-7/16 in
Pipe Size - Valves
1/2 in
Seal Material - Valves
NBR
Solenoid Valve Product Group
Fuel Gas Solenoid Valve with Test Port
Valve Body Material
Aluminum
Valve Configuration
Normally Closed
Valve Ways & Positions
2-Way/2-Position
Voltage
120V AC
Watts
10.1 W
