OEM#: CDF548RENew OEM Original Outright

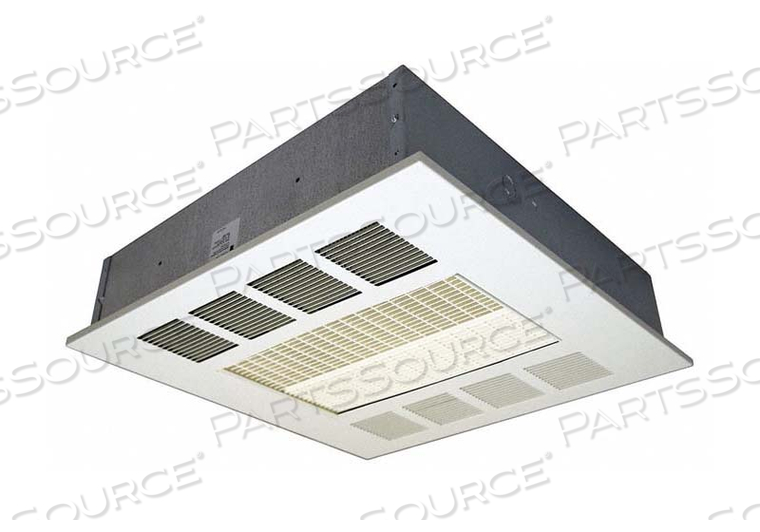

ELEC CEILING PANEL HEATER 23-3/4 L 208V by QMark
Your price:
$1,407.86 each
OEM#: CDF548REELEC CEILING PANEL HEATER 23-3/4 L 208V by QMark
New OEM Original Outright
Your price:
$1,407.86 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: CDF548RE Key Specs
Item
ELEC CEILING PANEL HEATER 23-3/4 L 208V
OEM
QMark
OEM #
CDF548RE
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Air Flow
300 cfm
Air Temperature Rise
42 Degrees F
Amperage
19.2A/14.2A/9.6A
Control Type
Thermostat
Country of Origin
USA
Frequency
60 Hz
Heater Mounting Position
Vertical Burn
Heating Capacity
6,800/10,200/13,700 BtuH
Heating Method
Fan Forced
Housing Color
White
Housing Finish
Powder Coated
Housing Material
Steel
Mounting Location
Ceiling
Mounting Type
Recessed
Nominal Voltage - HVAC
208V AC
Overall Depth
7 in
Overall Dimensions - L x W x D
23-3/4 in x 23-3/4 in x 7 in
Overall Height
5-3/4 in
Overall Length
23-3/4 in
Overall Width
23-3/4 in
Phase
1 or 3
Standards
cULus Listed
Thermostat Included
No
Voltage
208V AC
Voltage, Phase
208V AC, 1 or 3-phase
Wattage Output
2000W/3000W/4000W
