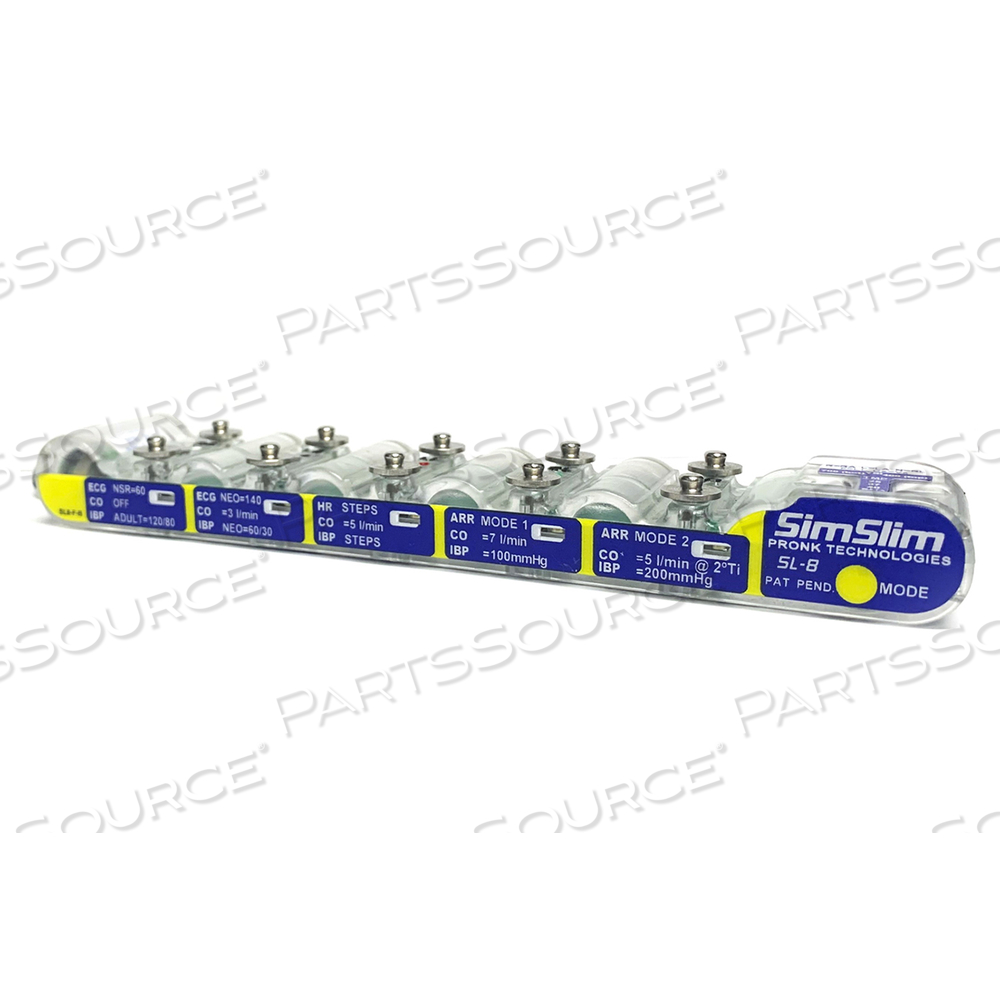

SL-8 SIMSLIM MULTI-PARAMETER PATIENT SIMULATOR by Pronk Technologies Inc
OEM#: SL-8

New OEM Original Outright
SL-8 SIMSLIM MULTI-PARAMETER PATIENT SIMULATOR by Pronk Technologies Inc
SL-8 SIMSLIM MULTI-PARAMETER PATIENT SIMULATOR by Pronk Technologies Inc
Your price:
$1,868.60 / each
This item ships within 7 days 95% of the time .
Asset Information
Product Overview

The smallest, comprehensive multi-parameter patient simulator on the market. Includes ECG, Respiration, Arrhythmia, 4-IBP, YSI 400/700 Temperature, and Cardiac Output. Its patented power circuitry provides amazing battery life up to 10 years without charging or changing batteries! One button operation reduces the time for setup and completing testing.

Single Button Operation

  • Double Click - Change Mode
  • Single Click - Show Mode/Zero IBP/Advance Waveform
  • Hold (2s) - Start CO

ECG Simulation

  • Heart Rate Accuracy 0.5%
  • R Wave Size - 1mV (lead II) +/- 10% on NSR mode only
  • R Wave - Width 35 ms
  • Wave Shape - QRS wave
  • Connection - 10 Snaps, plus 4mm and 1/8” banana plug grooves
  • Rates - 60, 140, 30, 60, 90, 120, 160, 200, 240 (BPM)

Pacer Simulation

  • Synchronized with ECG
  • Pacer Size - 0.4 to 2 mV
  • Pacer Width - 1.6 ms

Respiration Simulation

  • Respiration Accuracy - 0.5%
  • Synchronized with NIBP
  • Size - 1 Ohm
  • Rates - 30, 70, 15, 30, 45, 60, 80, 100, 120 (RPM)

Invasive Blood Pressure Simulation

  • Synchronized with NIBP
  • Excitation Voltag: DC range - 2.5 to 5.7 VAC, Range - 5 to 11.4Vp-p
  • Pressure range: 0-250 mmHg
  • Simulated Pressure Accuracy: +/- 1 mmHg
  • Wiring: + Excitation - Pin 1, – Excitation Pin 4, + Sig - pin 3, – Sig - pin 6
  • Simulation Rates Dynamic - 120/80, 30/10, 125/15, 8/2, 60/30, 20/10, 60/5, 4/0, Static - 100, 200, Step - 0, 25, 50, 100, 150, 200, 250

Temperature Simulation

  • YSI 400 Simulation Values: 25°C, 37°C, 40°C
  • YSI 700 Simulation Values: 25, 37, 40 (°C)
  • Simulation Accuracy: +/- 0.03 °C

Technical Specs

Key Specs

Item
SL-8 SIMSLIM MULTI-PARAMETER PATIENT SIMULATOR
OEM
Pronk Technologies Inc
OEM #
SL-8
Condition
New OEM Original
Returnable
No
Battery Life
Up to 10 Year
Battery Type
Lithium Thionyl Chloride
ECG/Resp Connection
10 ECG Snaps with 4 MM and 1/8" Banana Plug Grooves
Energy Consumption
0.03 mA
IBP Connection
4 X 6 Pin Mini-DIN
Isolated
Yes
Operating Temperature
10 - 35°C
Storage Temperature
-20 - 60°C
Volts
3.6 VDC
YSI Temp Connection
2 X 3.5 mm Mini Stereo Jack
