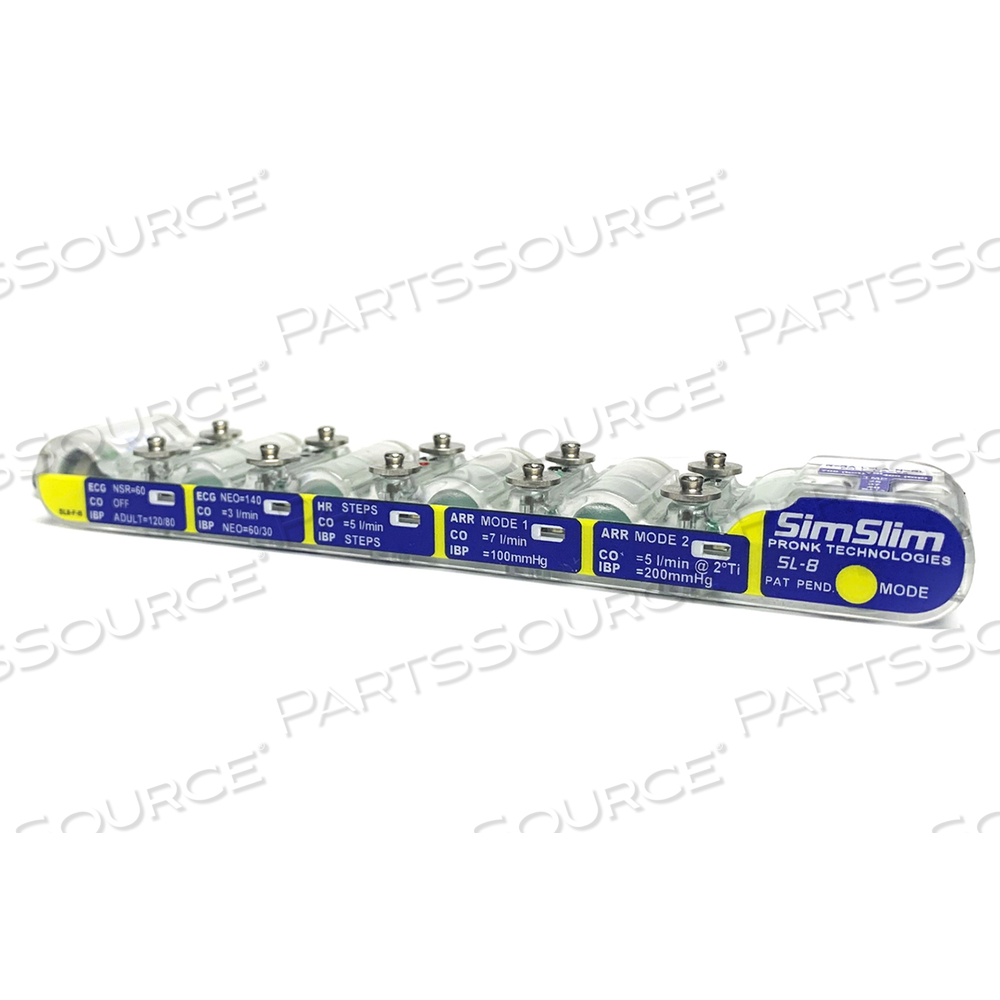

SL-8 SIMSLIM MULTI-PARAMETER ECG PATIENT SIMULATOR by Pronk Technologies Inc
OEM#: SL-8-CESL-8 SIMSLIM MULTI-PARAMETER ECG PATIENT SIMULATOR by Pronk Technologies Inc
The smallest, comprehensive multi-parameter patient simulator on the market. Includes ECG, Respiration, Arrhythmia, 4-IBP, YSI 400/700 Temperature, and Cardiac Output. Its patented power circuitry provides amazing battery life up to 10 years without charging or changing batteries! One button operation reduces the time for setup and completing testing.
Features
- SL-8 SimSlim® Multi-Parameter Patient Simulator Features:
- 12-lead ECG:
- 8 Selectable Heart Rates: 30, 60, 90, 120, 140, 160, 200, 240 bpm
- 10 Selectable Arrhythmias: NSR w/ PVCs, VTACH, VFIB, Asys, Bigeminy, Pacer, Trigeminy, ST+, 2nd Deg. Block, Square Wave
- 8 Banana Plug Interface: 4 mm & 1/8-in (3.2 mm) banana plug grooves for easy connect to 12-lead EKG
- Respiration:
- 8 Selectable Rates: 15, 30, 45, 60, 70, 80, 100, 120 bpm
- 4 IBP Channels:
- 8 Dynamic: 120/80, 60/30, 30/10, 20/10, 125/15, 60/5, 8/2, 4/1 mmHg
- 7 Static: 0, 25, 50, 100, 150, 200, 250 mmHg
- Cardiac Output Simulation:
- 3, 5 and 7 l/m. No adapter cable required.
- 5 l/m @ 2°C Temperature Injectate (Ti) simulation. Ti simulator available.
- YSI 700 and 400 Temp Simulations:
- 25, 37, and 40 degrees Celsius
- Battery Life:
- Total life depends on usage: 5-10 years, all day, every day. No charging or changing required.
Package Contents
- (1) SL-8 SimSlim Simulator
- (1) IBP extension cable, 6ft.
- (1) Temperature adapter cable
- (1) Certificate of Calibration
