OEM#: H18ANew OEM Original Outright

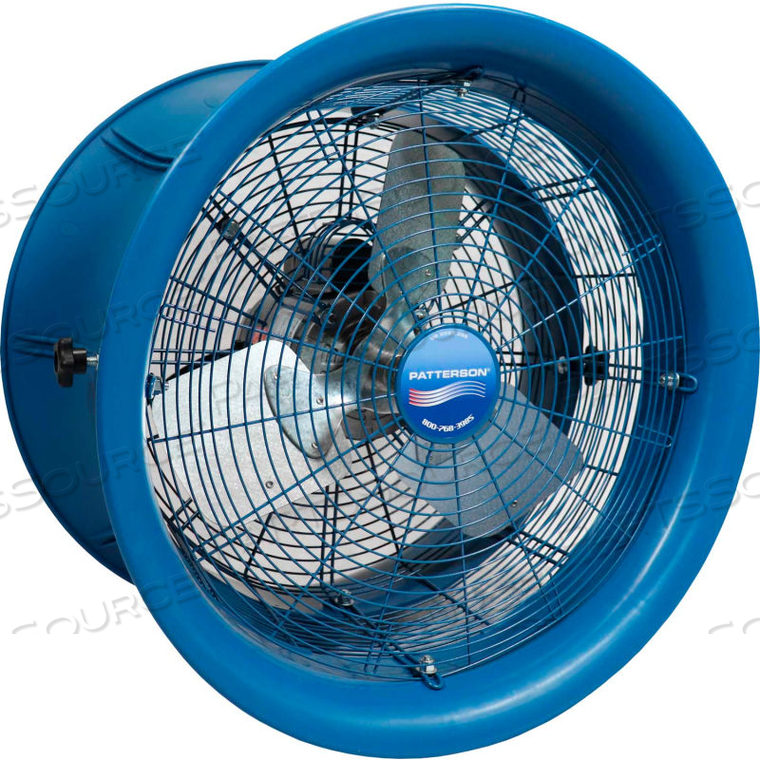

HIGH VELOCITY FAN, 18", 115V, 1 PH W/ YOKE MOUNT by Patterson Fan Company, Inc.
Your price:
$886.71 each
OEM#: H18AHIGH VELOCITY FAN, 18", 115V, 1 PH W/ YOKE MOUNT by Patterson Fan Company, Inc.
New OEM Original Outright
Your price:
$886.71 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: H18A Key Specs
Item
HIGH VELOCITY FAN, 18", 115V, 1 PH W/ YOKE MOUNT
OEM
Patterson Fan Company, Inc.
OEM #
H18A
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Amps
6
Approvals Or Certifications
OSHA Compliant
Assembly
Assembled
Blade Quantity
3
Blade Type
Galvanized Aluminum
Cfm High
3,800
Color Finish
Blue
Construction
High Impact Polypropylene
Cooling Sq. Ft.
2,700
Country of Origin
USA
Decibels (Dba)
71.2
Depth Inches
16
Distance Air Throw Feet
80'
Drive Type
Direct Drive
Fan Diameter Inches
18
Fan Type
Industrial
Height Inches
24
Hertz (Hz)
60
Horsepower
1/2
Includes
Yoke Mount Bracket
Max Ambient Temperature °F
104
Model
B1922642
Motor Type
Totally Enclosed Air Over (TEAO)
Mount Type
Wall / Column / Pedestal
Oscillating/Non-Oscillating
Non-Oscillating
Phase
1
Power Cord Length Feet
12
Power Cord Type
SJT 3 Conductor
Rpm High
1,725
Speeds
1
Voltage
115
Watts
345
Weight Lbs
41.6
Width Inches
24
