ALUMINUM ALLOY BLOCK NUT FOR C-ARM X-RAY SYSTEM by OEC Medical Systems (GE Healthcare)

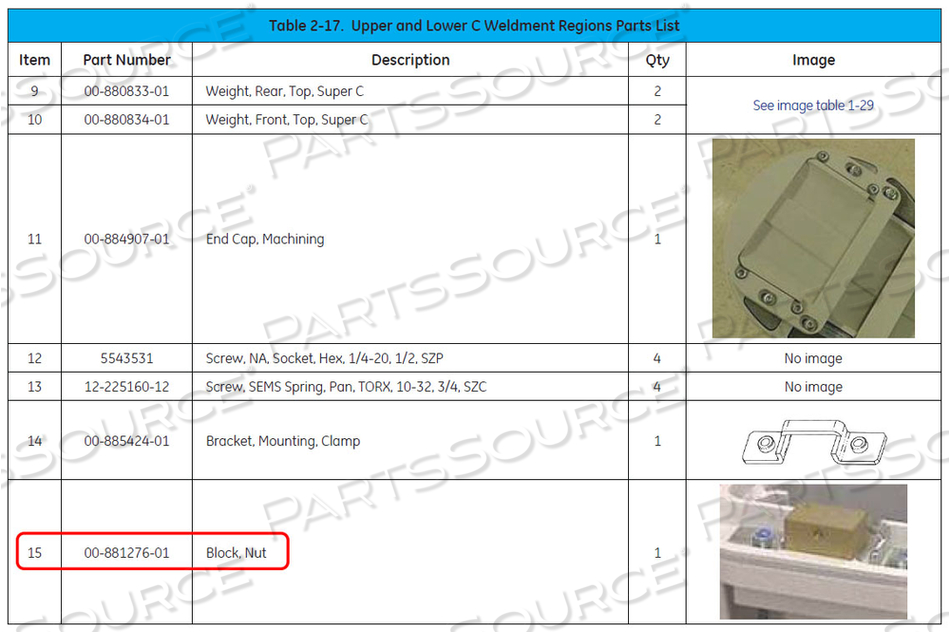

OEM#: 00-881276-01ALUMINUM ALLOY BLOCK NUT FOR C-ARM X-RAY SYSTEM by OEC Medical Systems (GE Healthcare)
Nut, Block Type, Aluminum Alloy, For C-Arm X-Ray System
The purpose of this Nut Block is to provide support to the mounting clamp bracket that is fastened to the toothed clamp plate. It comes with 2 holes: one on top and one on the side of the block with Unified Coarse Threads (UNC) and is machined on top for a tight fit into the assembly. This block is made up of tempered Aluminum Alloy 6061-T6 material which exhibits good mechanical properties, good ultimate and tensile strength. The block assembly has a Chemical Conversion Coating Per MIL-DTL-5541F, Type II, Class 3 which gives it an artificially aged appearance. This Nut Block assembly is used in the lower orbital assembly of GE OEC C-Arm X-Ray systems.
- High Quality Tempered Aluminum Alloy Material
- With UNC Threaded Holes
- Good Dimensional Stability
- Good Ultimate And Tensile Strength
- High Quality Tempered Aluminum Alloy Material
- With UNC Threaded Holes
- Good Dimensional Stability
- Good Ultimate And Tensile Strength
The purpose of this Nut Block is to provide support to the mounting clamp bracket that is fastened to the toothed clamp plate. It comes with 2 holes: one on top and one on the side of the block with Unified Coarse Threads (UNC) and is machined on top for a tight fit into the assembly. This block is made up of tempered Aluminum Alloy 6061-T6 material which exhibits good mechanical properties, good ultimate and tensile strength. The block assembly has a Chemical Conversion Coating Per MIL-DTL-5541F, Type II, Class 3 which gives it an artificially aged appearance. This Nut Block assembly is used in the lower orbital assembly of GE OEC C-Arm X-Ray systems.
- High Quality Tempered Aluminum Alloy Material
- With UNC Threaded Holes
- Good Dimensional Stability
- Good Ultimate And Tensile Strength
- OEC Medical Systems (GE Healthcare)
- 9800
- 9900
- 9900 ELITE
- 9800 ELITE
