OEM#: L12IA452BP00061New OEM Original Outright

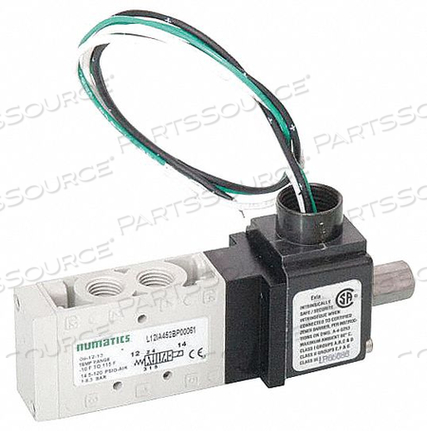

HAZARDOUS LOCATION SOLENOID 1/8 24VDC by Numatics

Your price:
$942.51 eachReady to ship
HomeNumaticsl12ia452bp00061
HAZARDOUS LOCATION SOLENOID 1/8 24VDC by Numatics
HAZARDOUS LOCATION SOLENOID 1/8 24VDC by Numatics

OEM#: L12IA452BP00061
HAZARDOUS LOCATION SOLENOID 1/8 24VDC by Numatics

New OEM Original Outright
Your price:
$942.51 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: L12IA452BP00061 Key Specs
Item
HAZARDOUS LOCATION SOLENOID 1/8 24VDC
OEM
Numatics
OEM #
L12IA452BP00061
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Ambient Temp. Range
-10 Degrees to 115 Degrees F
Body Style
Body Ported
Center Position
Closed
Coefficient of Volume
1
Electrical Connections
Hardwired
Max. CFM - Valves
46.0
NEMA Classification
NEMA 4
Overall Height
3 in
Overall Length
5 3/4 in
Overall Width
1 1/2 in
Override
Non-Locking Flush
Pilot Port Size
1/4 in NPT
Pilot Pressure
14.5 to 120 psig
Pipe Size
1/8 in
Pneumatic Valves Product Group
Solenoid Air Control Valve
Power Consumption
1.8 W
Shifting Technology
Spool & Sleeve
Standards
IS / I, II, III / 1 / ABCDEFG-A-4-5253 / G (PER NEC 500 (approval Doc J.1.2T7A3.AX))
Valve Actuator / Return
Solenoid Air Pilot / Spring
Valve Vacuum Range
0 to 28 in Hg
Valve Ways and Positions
4-Way/3-Position
Voltage
24V DC
