OEM#: UCFL206-103D1New OEM Original Outright

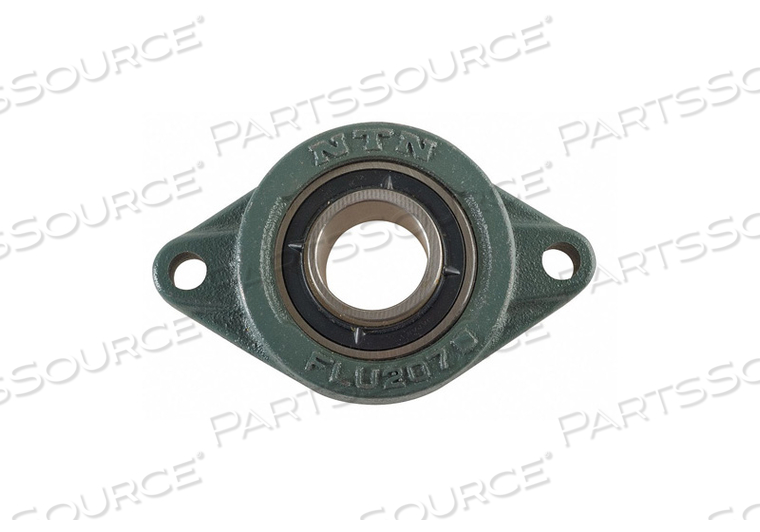

FLANGE BEARING 2-BOLT BALL 1-3/16 BORE by NTN

Your price:
$120.64 eachReady to ship
HomeNTNUCFL206103D1
FLANGE BEARING 2-BOLT BALL 1-3/16 BORE by NTN
FLANGE BEARING 2-BOLT BALL 1-3/16 BORE by NTN

OEM#: UCFL206-103D1
FLANGE BEARING 2-BOLT BALL 1-3/16 BORE by NTN

New OEM Original Outright
Your price:
$120.64 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: UCFL206-103D1 Key Specs
Item
FLANGE BEARING 2-BOLT BALL 1-3/16 BORE
OEM
NTN
OEM #
UCFL206-103D1
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearing Housing Material Type
Cast Iron
Bearing Insert Material
52100 Chrome Steel
Bearing Insert Type
Ball
Bearing Lubrication
Shell Alvania #3 or NLGI #3 Equivalent
Bolt Hole Center-to-Center
4 39/64 in
Bolt Size
3/8 in
Bore Dia.
1 3/16 in
Dimension A
5/64 in
Dimension B
3 11/32 in
Dimension C
5/8 in
Dimension D
4 39/64 in
Dimension H
5 13/16 in
Dimension H1
1 7/32 in
Dimension J
5/64 in
Dimension L
1/2 in
Dimension N
1 15/16 in
Dimension S
1 9/16 in
Dynamic Load Capacity
4,400 lb
Finish
Painted
Mounted Bearing Item
2-Bolt Flange Bearing
Overall Height
1 37/64 in
Overall Length
5 13/16 in
Overall Width
3 5/32 in
Series
Standard Duty
Shaft Locking Type
Set Screw
Static Load Capacity
2,540 lb
Temp. Range
-20 Degrees to 250 Degrees F
