OEM#: SK873.1-112MP/4 61.07New OEM Original Outright

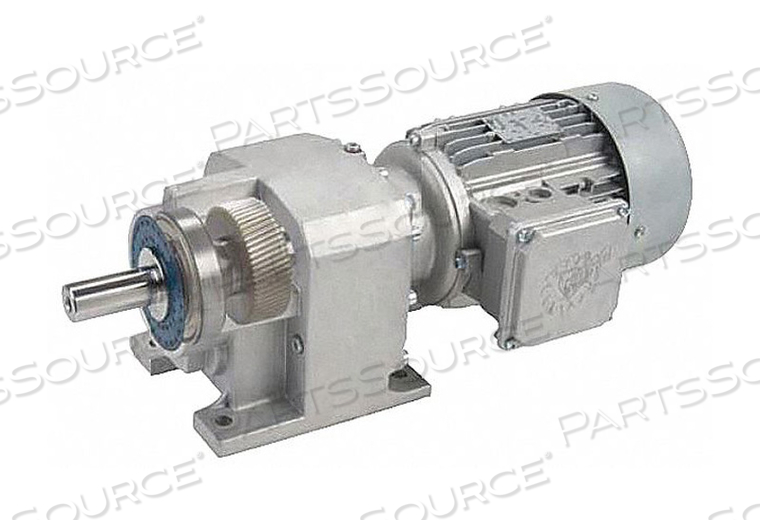

AC GEARMOTOR 29RPM TEFC 61.07 INLINE 5HP by Nord
Your price:
$4,523.37 each
OEM#: SK873.1-112MP/4 61.07AC GEARMOTOR 29RPM TEFC 61.07 INLINE 5HP by Nord
New OEM Original Outright
Your price:
$4,523.37 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: SK873.1-112MP/4 61.07 Key Specs
Item
AC GEARMOTOR 29RPM TEFC 61.07 INLINE 5HP
OEM
Nord
OEM #
SK873.1-112MP/4 61.07
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
Power Transmission
Bearings
Ball
Finish
Stainless Steel Paint
Full Load Amps
6.5
Gear Case Material
Cast Iron
Gear Material
Hardened Steel
Gear Ratio
61:1
Gear Type
Helical/In-line
Gearmotor Brake Type
None
Gearmotor Enclosure
Totally Enclosed Fan-Cooled
Gearmotor Mounting Position
Horizontal
Gearmotor Phase
3
Gearmotor Rotation
CW/CCW
Gearmotor Shaft Orientation
Inline
Gearmotor Shaft Type
Single
Gearmotor Type
AC Gearmotor
Gearmotor Voltage
230/460V AC
Gears
Hardened Steel
Housing
Cast Iron
Hz
60 Hz
Input HP
5 hp
Insulation Class
F
Keyway Size Type
1/2 in x 1/4 in x 2-5/8 in
Length Less Shaft
24 1/8 in
Lubrication
Grease Filled
Max. Ambient Temp.
40 Degrees C
Max. Torque
15,045.0 in-lb
Motor Type
3-Phase
Nameplate RPM
29 RPM
No Load RPM
29 RPM
Number of Brake Discs Required
0
Overhung Load
3,766 lb
Reversible Shaft Output
No
Seals
Lip
Shaft Dia. (Dimension U)
2 1/8 in
Standards
UL Recognized, CSA Certified, CE Certified
Thermal Protection
None
