OEM#: 7013CYDUP4New OEM Original Outright

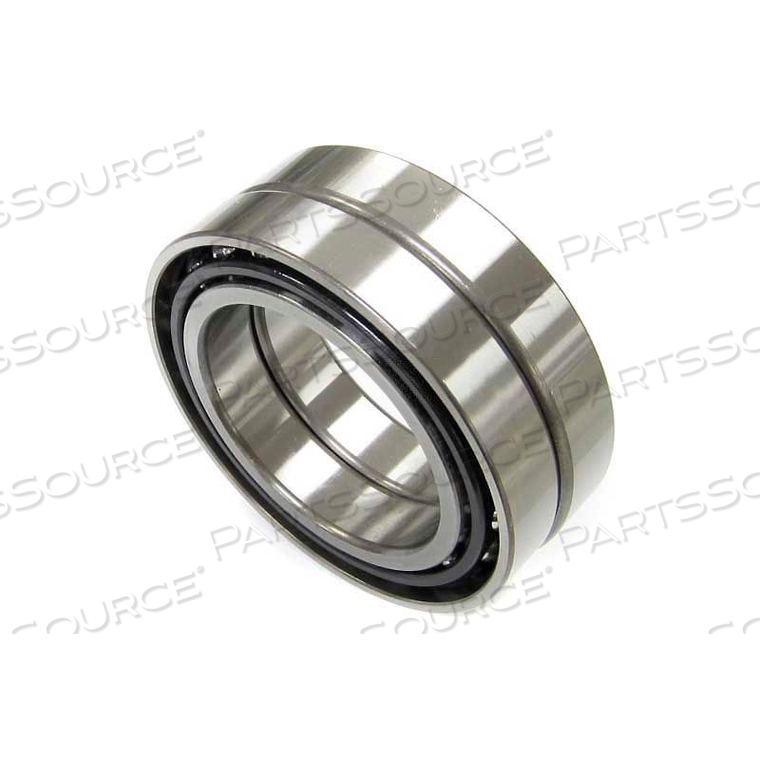

SUPER PRECISION BEARING, UNIVERSAL GROUND, DUPLEX, 65MM BORE, 100MM OD by Nachi America Inc
Your price:
$894.28 each
OEM#: 7013CYDUP4SUPER PRECISION BEARING, UNIVERSAL GROUND, DUPLEX, 65MM BORE, 100MM OD by Nachi America Inc
New OEM Original Outright
Your price:
$894.28 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
NACHI Super Precision Bearing 7013CYDUP4, Universal Ground, Duplex, 65MM Bore, 100MM OD
NACHI Features
NACHI Features
- Two single row angular contact ball bearings (15° contact angle P4) are assembled to provide a high degree of rigidity in both radial & axial directions
- These Universal Flush Ground bearings can be mounted in DB, DF or DT
- Meets the needs of machine tool manufacturers for precision
- These bearings function at lowest possible temperature for wide range of speeds & operating loads
Technical Specs
P/N: 7013CYDUP4 Key Specs
Item
SUPER PRECISION BEARING, UNIVERSAL GROUND, DUPLEX, 65MM BORE, 100MM OD
OEM
Nachi America Inc
OEM #
7013CYDUP4
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bearing Style
Duplex
Bore Diameter Millimeters
65
Cage Type
Molded Polyamide
Contact Angle (Degrees)
15
Country of Origin
Japan
Dynamic Load Rating (N)
60,500 per pair
Max Speed / Oil (Rpm)
10000
Outer Diameter Millimeters
100
Preload
Light
Series
7000
Static Load Rating (N)
69,000 per pair
Tolerance
P4 (ABEC7)
Width Millimeters
18 X 2
