OEM#: 60TAB12UP4New OEM Original Outright

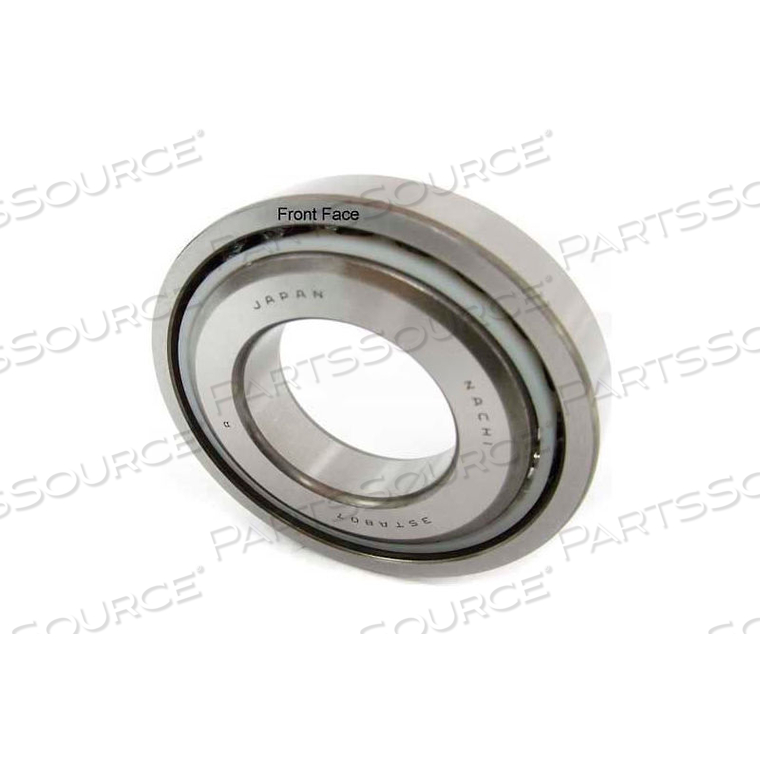

BALL SCREW SUPPORT BEARING, SINGLE, FLUSH GROUND, 60MM BORE, 120MM OD by Nachi America Inc

Your price:
$829.93 eachReady to ship
HomeNachi America Inc60tab12up4
BALL SCREW SUPPORT BEARING, SINGLE, FLUSH GROUND, 60MM BORE, 120MM OD by Nachi America Inc
BALL SCREW SUPPORT BEARING, SINGLE, FLUSH GROUND, 60MM BORE, 120MM OD by Nachi America Inc

OEM#: 60TAB12UP4
BALL SCREW SUPPORT BEARING, SINGLE, FLUSH GROUND, 60MM BORE, 120MM OD by Nachi America Inc

New OEM Original Outright
Your price:
$829.93 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview

NACHI Ball Screw Support Bearing 60TAB12UP4, Single, Flush Ground, 60MM Bore, 120MM OD

Features

  • These bearings are designed to support ball screws that are used as actuators of high precision and high speed machines
  • Their stiffness is much greater than conventional angular contact ball bearings as these have a greater number of balls
  • These bearings are supplied with a pre-set preload to eliminate complicated adjustment and torque measurement
  • Flush ground bearings (suffix DU or U) can be used in DB (back to back), DF (face to face) or DT (tandem) assembly
NOTE - Load Ratings

When single flush ground bearing (suffix U) is assembled in duplex and axial load is applied to 2 rows or 3 rows, load rating listed is to be multiplied by 1.62 or 2.16 respectively for Dynamic and multiplied by 2 or 3 respectively for Axial Limiting Load.

Technical Specs
P/N: 60TAB12UP4 Key Specs
Item
BALL SCREW SUPPORT BEARING, SINGLE, FLUSH GROUND, 60MM BORE, 120MM OD
OEM
Nachi America Inc
OEM #
60TAB12UP4
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Axial Limiting Load (N)
137,000
Bearing Style
Flush Ground
Bore Diameter Millimeters
60
Cage Type
Polyamide Resin
Contact Angle (Degrees)
60°
Country of Origin
Japan
Dynamic Load Rating (N)
73,000
Max Speed (Rpm) / Grease
2,300
Max Speed / Oil (Rpm)
3,000
Outer Diameter Millimeters
120
Preload
Medium
Tolerance
ISO P4
Width Millimeters
20

NACHI Ball Screw Support Bearing 60TAB12UP4, Single, Flush Ground, 60MM Bore, 120MM OD

Features

  • These bearings are designed to support ball screws that are used as actuators of high precision and high speed machines
  • Their stiffness is much greater than conventional angular contact ball bearings as these have a greater number of balls
  • These bearings are supplied with a pre-set preload to eliminate complicated adjustment and torque measurement
  • Flush ground bearings (suffix DU or U) can be used in DB (back to back), DF (face to face) or DT (tandem) assembly
NOTE - Load Ratings

When single flush ground bearing (suffix U) is assembled in duplex and axial load is applied to 2 rows or 3 rows, load rating listed is to be multiplied by 1.62 or 2.16 respectively for Dynamic and multiplied by 2 or 3 respectively for Axial Limiting Load.
