OEM#: 40TAB09DUP4New OEM Original Outright

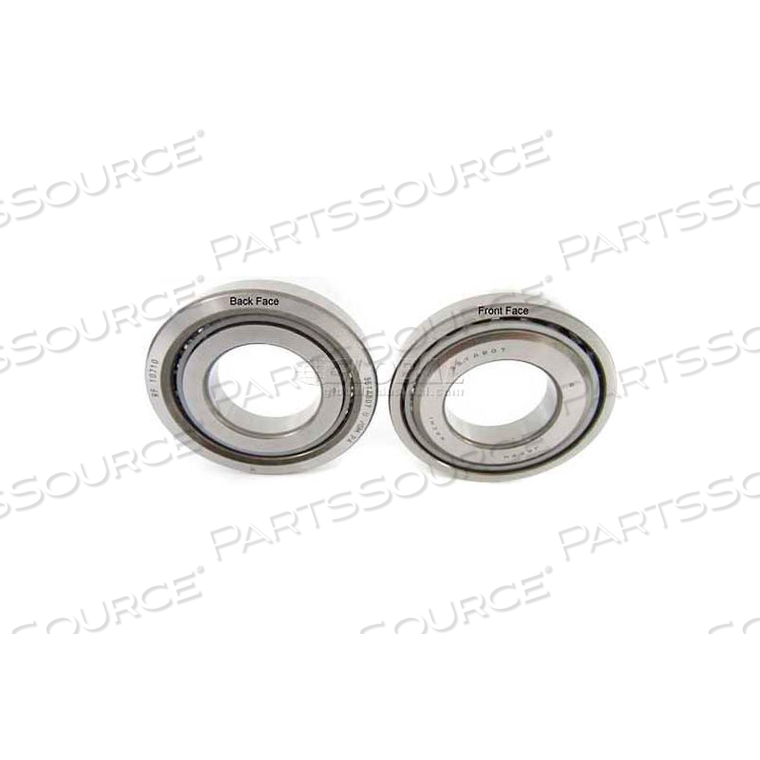

BALL SCREW SUPPORT BEARING, DUPLEX, FLUSH GROUND, 40MM BORE, 90MM OD by Nachi America Inc
Your price:
$906.62 each
OEM#: 40TAB09DUP4BALL SCREW SUPPORT BEARING, DUPLEX, FLUSH GROUND, 40MM BORE, 90MM OD by Nachi America Inc
New OEM Original Outright
Your price:
$906.62 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
NACHI Ball Screw Support Bearing 40TAB09DUP4, Duplex, Flush Ground, 40MM Bore, 90MM OD
Features
Features
- These bearings are designed to support ball screws that are used as actuators of high precision and high speed machines
- Their stiffness is much greater than conventional angular contact ball bearings as these have a greater number of balls
- These bearings are supplied with a pre-set preload to eliminate complicated adjustment and torque measurement
- Flush ground bearings (suffix DU or U) can be used in DB (back to back), DF (face to face) or DT (tandem) assembly
Technical Specs
P/N: 40TAB09DUP4 Key Specs
Item
BALL SCREW SUPPORT BEARING, DUPLEX, FLUSH GROUND, 40MM BORE, 90MM OD
OEM
Nachi America Inc
OEM #
40TAB09DUP4
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Axial Limiting Load (N)
202,000
Bearing Style
Flush Ground
Bore Diameter Millimeters
40
Cage Type
Polyamide Resin
Contact Angle (Degrees)
60°
Country of Origin
Japan
Dynamic Load Rating (N)
105,300
Max Speed (Rpm) / Grease
3,150
Max Speed / Oil (Rpm)
4,000
Outer Diameter Millimeters
90
Preload
Medium
Tolerance
ISO P4
Width Millimeters
20
