OEM#: 5204ANew OEM Original Outright

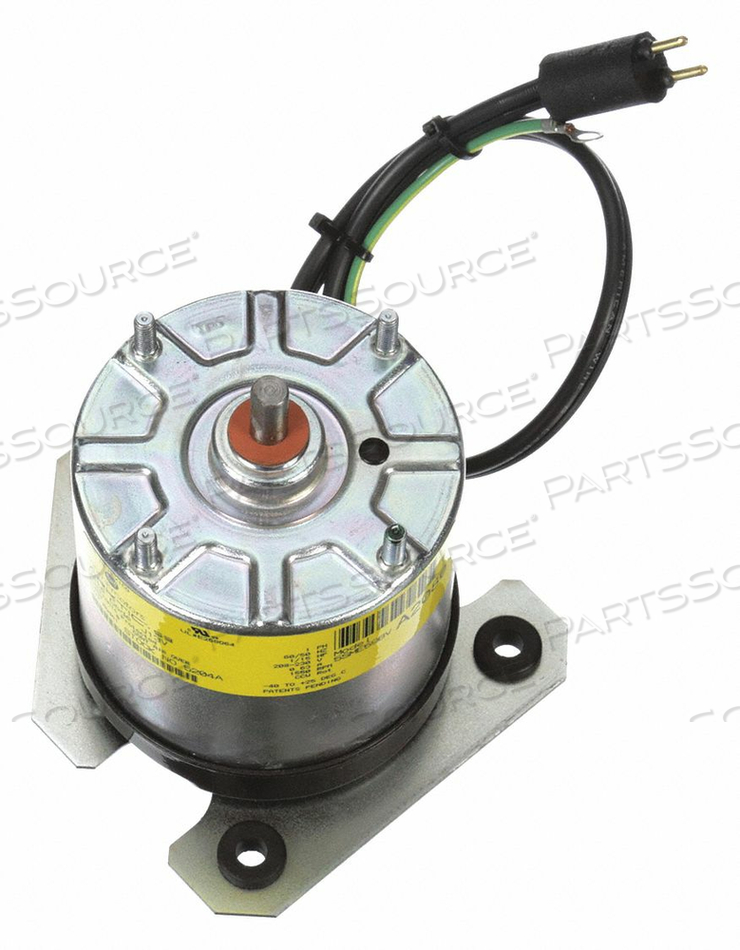

BRUSHLESS DC MOTOR ECM 1/15 HP 208/230V by Morrill
Your price:
$348.10 each
OEM#: 5204ABRUSHLESS DC MOTOR ECM 1/15 HP 208/230V by Morrill
New OEM Original Outright
Your price:
$348.10 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 5204A Key Specs
Item
BRUSHLESS DC MOTOR ECM 1/15 HP 208/230V
OEM
Morrill
OEM #
5204A
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Ambient Temperature
-40 Degrees to 25 Degrees C
Application
Walk In Coolers, Freezers
Body Diameter
3-7/16 in
Bolt Circle Diameter
2-13/16 in
Capacitor Required
No
Country of Origin
Mexico
Duty
Continuous
Frame
Non-Standard
Full Load Amps
0.6-0.6
HP
1/15 hp
Hz
60/50
Includes
Special Mounting Bracket - Direct Replacement for Hussman/Krack Units
Ins. Class
B
Length Less Shaft
3-13/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Ball
Motor Design
ECM
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Stud
Motor Shaft Design
Flat
Motor Shaft Rotation
CCWLE
Motor Sub Application
Refrigerator/Freezer
Mounting Pattern
2-4/5 in Diameter Bolt Circle
Nameplate RPM
1550
Number of Speeds
1
Output Watts
50 W
Overall Length
4-13/16 in
Phase
1
Plug Type
Round 2 Pin
Shaft Diameter
5/16 in
Shaft Length
1 in
Standards
UL Recognized (E258064)
Voltage
208-230
