OEM#: 3100D-2-FM-1-1-LCDNew OEM Original Outright

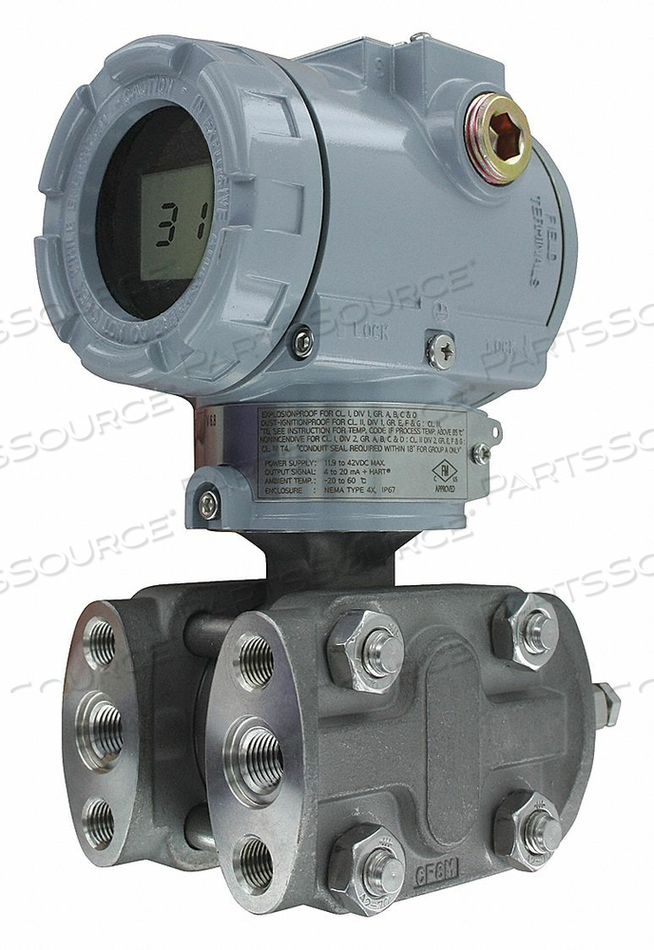

PRESSURE TRANSMITTER 0-30 IN W.C. FM CE by Mercoid

Your price:
$2,323.15 eachReady to ship
HomeMercoid3100D2FM11LCD
PRESSURE TRANSMITTER 0-30 IN W.C. FM CE by Mercoid
PRESSURE TRANSMITTER 0-30 IN W.C. FM CE by Mercoid

OEM#: 3100D-2-FM-1-1-LCD
PRESSURE TRANSMITTER 0-30 IN W.C. FM CE by Mercoid

New OEM Original Outright
Your price:
$2,323.15 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 3100D-2-FM-1-1-LCD Key Specs
Item
PRESSURE TRANSMITTER 0-30 IN W.C. FM CE
OEM
Mercoid
OEM #
3100D-2-FM-1-1-LCD
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Accuracy - Transmitter
+/-0.075% Full Scale
Calibration Certificate
N
Compatible With
Clean Dry Non-corrosive Gasses
Connection Location - Transmitter
Front
Country of Origin
Republic of Korea
Display - Transmitter
5 Digit LCD
Display Units
Multiple Units
Electrical Connections - Transmitter
Screw Terminals
Housing
Epoxy Coated Aluminum
Includes
Instruction Manual
Loop Resistance
0 to 1500 ohms
Max Pressure (PSI)
2,000 psi
NEMA Rating
4X
Operating Temperature - Transmitter
-40 Degrees to 248 Degrees F
Output - Transmitter
4 to 20mA DC, HART Communication
Overall Depth - Transmitter
4.41 in
Overall Height - Transmitter
7.58 in
Overall Width - Transmitter
3.39 in
Power Required - Transmitters
12 to 45V DC
Process Connection Size - Transmitter
1/4 in
Process Connection Type - Transmitter
FNPT
Range Units - Transmitter
in wc
Range Values - Transmitter
0 to 30
Safety Rating - Transmitter
Class I Div.1 Groups A, B, C, D
Shape - Transmitter
Irregular
Thermal Error
+/-0.125% span/32 Degrees C
Transmitter Type
Explosion Proof Differential Transmitter
Wetted Materials - Transmitters
316L Stainless Steel
Wiring Entry - Transmitter
1/2 in FNPT
