OEM#: HG305-002-630-HT-MP-LHNew OEM Original Outright

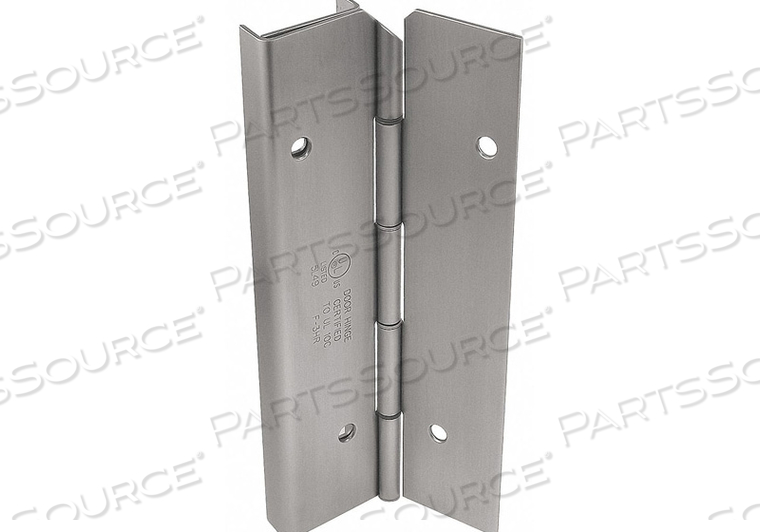

CONTINUOUS HINGE W/EDGE GUARD 96 IN L by Markar

Your price:
$1,289.81 eachReady to ship
HomeMarkarHG305002630HTMPLH
CONTINUOUS HINGE W/EDGE GUARD 96 IN L by Markar
CONTINUOUS HINGE W/EDGE GUARD 96 IN L by Markar

OEM#: HG305-002-630-HT-MP-LH
CONTINUOUS HINGE W/EDGE GUARD 96 IN L by Markar

New OEM Original Outright
Your price:
$1,289.81 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: HG305-002-630-HT-MP-LH Key Specs
Item
CONTINUOUS HINGE W/EDGE GUARD 96 IN L
OEM
Markar
OEM #
HG305-002-630-HT-MP-LH
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Country of Origin
USA
Door Leaf Height
96 in
Door Leaf Thickness
0.075 in
Door Leaf Width
1-3/4 in
Finish
Satin Stainless Steel
Frame Leaf Height
96 in
Frame Leaf Thickness
0.075 in
Frame Leaf Width
1-15/16 in
Hardware
Included
Hole Spacing
6 in
Holes
With
Holes per Leaf
24
Length
96 in
Ligature Resistant
Yes
Load Capacity
540 lb.
Material
Stainless Steel
Mounting
Full Mortise
Orientation
Left Hand
Overall Knuckle Height
2 in
Overall Width
4-1/2 in
Pin Diameter
3/16 in
Pin Material
Stainless Steel
Pin Type
Hospital Tip
Range of Motion
180 Degrees
Required Door Thickness
1-3/4 in
Standards
ANSI/BHMA Standard A 156.26 Grade 1, Fire Rated
