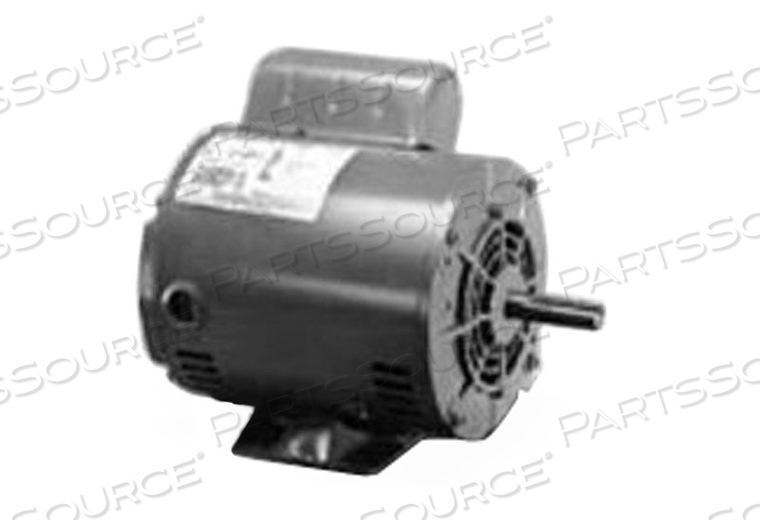

OEM#: C186ANew OEM Original Outright
C186, 5KCR49SN0068X, 1 1/2HP, 1725RPM, 115/208-230V, 1PH, 56H FR, DP by Marathon Motors
Your price:
$538.21 each
OEM#: C186AC186, 5KCR49SN0068X, 1 1/2HP, 1725RPM, 115/208-230V, 1PH, 56H FR, DP by Marathon Motors
New OEM Original Outright
Your price:
$538.21 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
Marathon Motors, C186, 5KCR49SN0068X, 1 1/2HP, 1725RPM, 115/208-230V, 1PH, 56H FR, DP
Marathon's Single Phase extensive line of General Purpose motors are available in ODP and TEFC construction, Foot Mounted and Footless. Horsepower sizes available from stock range from 1/12 HP through 15 HP.
Marathon's Single Phase extensive line of General Purpose motors are available in ODP and TEFC construction, Foot Mounted and Footless. Horsepower sizes available from stock range from 1/12 HP through 15 HP.
Technical Specs
P/N: C186A Key Specs
Item
C186, 5KCR49SN0068X, 1 1/2HP, 1725RPM, 115/208-230V, 1PH, 56H FR, DP
OEM
Marathon Motors
OEM #
C186A
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Ambient Temp C
40
Bearing-Drive-End
6205
Bearing-Opp-Drive-End
6203
Csa
Y
Drive End Bearing Size
6205
Duty
Continuous
Enclosure
DP
Enclosure Type
Open/Drip Proof
Fl Amps
18.2/9.1
Frame
56H
Horsepower
1 1/2
Insulation Class
B
Is_Motor
Yes
Kva-Code
K
Model Number
5KCR49SN0068X
Motor Rpm 60Hz
1725
Mounting
Rigid
Nameplate Rpm
1725
Opposite End Bearing Size
6203
Orientation
Horizontal or Vertical
Phase
1
Rotation
CCW
Rpm Range
1701-1800
Service Factor
1.15
Starting Type
Switch and Mech
Thermal Protection
Automatic
Ul
Y
Voltage
115/208-230
Weight
35
Marathon Motors, C186, 5KCR49SN0068X, 1 1/2HP, 1725RPM, 115/208-230V, 1PH, 56H FR, DP
Marathon's Single Phase extensive line of General Purpose motors are available in ODP and TEFC construction, Foot Mounted and Footless. Horsepower sizes available from stock range from 1/12 HP through 15 HP.
Marathon's Single Phase extensive line of General Purpose motors are available in ODP and TEFC construction, Foot Mounted and Footless. Horsepower sizes available from stock range from 1/12 HP through 15 HP.
