OEM#: R378ANew OEM Original Outright

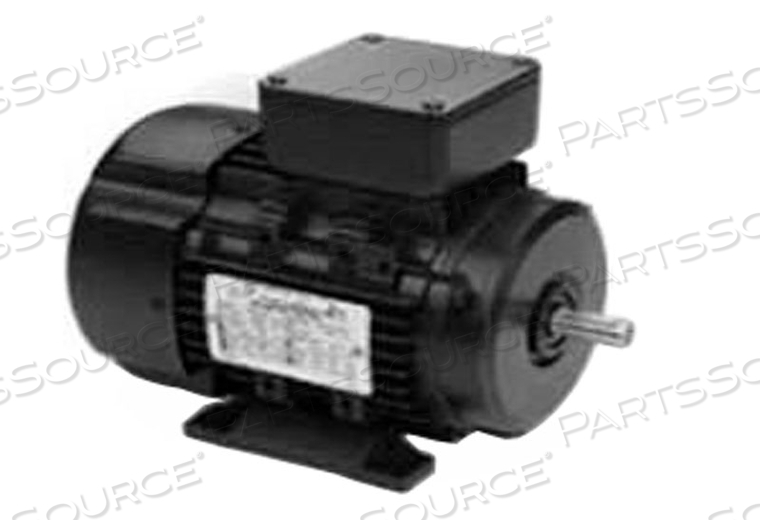

METRIC MOTOR, 90LT17FH6419, 2-1.5HP, 1800RPM, 230/460V, 3PH, 90L FR, TEFC by Marathon Motors
Your price:
$1,358.87 each
OEM#: R378AMETRIC MOTOR, 90LT17FH6419, 2-1.5HP, 1800RPM, 230/460V, 3PH, 90L FR, TEFC by Marathon Motors
New OEM Original Outright
Your price:
$1,358.87 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview
Marathon Motors Metric Motor, R378A, 90LT17FH6419, 2-1.5HP, 1800RPM, 230/460V, 3PH, 90L FR, TEFC
Marathon's line of Metric Dimension Motors are designed in IEC Frames from D63 through D200L. The motors are available from stock in 50 Hz or 60 Hz. This means that replacement 60 Hz motors are readily available from Marathon to replace metric motors.
Marathon's line of Metric Dimension Motors are designed in IEC Frames from D63 through D200L. The motors are available from stock in 50 Hz or 60 Hz. This means that replacement 60 Hz motors are readily available from Marathon to replace metric motors.
Technical Specs
P/N: R378A Key Specs
Item
METRIC MOTOR, 90LT17FH6419, 2-1.5HP, 1800RPM, 230/460V, 3PH, 90L FR, TEFC
OEM
Marathon Motors
OEM #
R378A
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
50 Hertz Fl Amps
6.4/3.2
50 Hertz Fl Eff
85.5
50 Hertz Hp
2
50 Hertz Kw
1.49
50 Hertz Rpm
1500
50 Hertz Sf
1.15
50 Hertz Voltage
200/400
60 Hertz Kw
1.49
Ambient Temp C
40
Approval-Ce
y
Assembly
F3
Bearing-Drive-End
6205
Bearing-Opp-Drive-End
6205
Country of Origin
USA
Csa
Y
Drive End Bearing Size
6205
Duty
Continuous
Enclosure
TEFC
Enclosure Type
Totally Enclosed
Fl Amps
5.4/2.7
Fl Efficiency
87.5
Frame
90L
Hertz
60/50
Horsepower
2
Insulation Class
F
Ip Code
55
Is_Motor
Yes
Kva-Code
K
Model Number
090LT17FH6419
Motor Rpm 50Hz
1500
Motor Rpm 60Hz
1800
Mounting
Rigid
Nameplate Rpm
1800
Nema Design
B
Opposite End Bearing Size
6205
Orientation
Horizontal
Phase
3
Rpm Range
1701-1800
Service Factor
1.15
Starting Type
Line or Inverter
Ul
Recognized Construction
Voltage
230/460
Weight
44
Marathon Motors Metric Motor, R378A, 90LT17FH6419, 2-1.5HP, 1800RPM, 230/460V, 3PH, 90L FR, TEFC
Marathon's line of Metric Dimension Motors are designed in IEC Frames from D63 through D200L. The motors are available from stock in 50 Hz or 60 Hz. This means that replacement 60 Hz motors are readily available from Marathon to replace metric motors.
Marathon's line of Metric Dimension Motors are designed in IEC Frames from D63 through D200L. The motors are available from stock in 50 Hz or 60 Hz. This means that replacement 60 Hz motors are readily available from Marathon to replace metric motors.
