OEM#: E570New OEM Original Outright
EXPLOSION PROOF MOTOR, 326TTGS6532, 50HP, 230/460V, 1800RPM, 3PH, EPFC by Marathon Motors
Your price:
$9,604.97 each
OEM#: E570EXPLOSION PROOF MOTOR, 326TTGS6532, 50HP, 230/460V, 1800RPM, 3PH, EPFC by Marathon Motors
New OEM Original Outright
Your price:
$9,604.97 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview

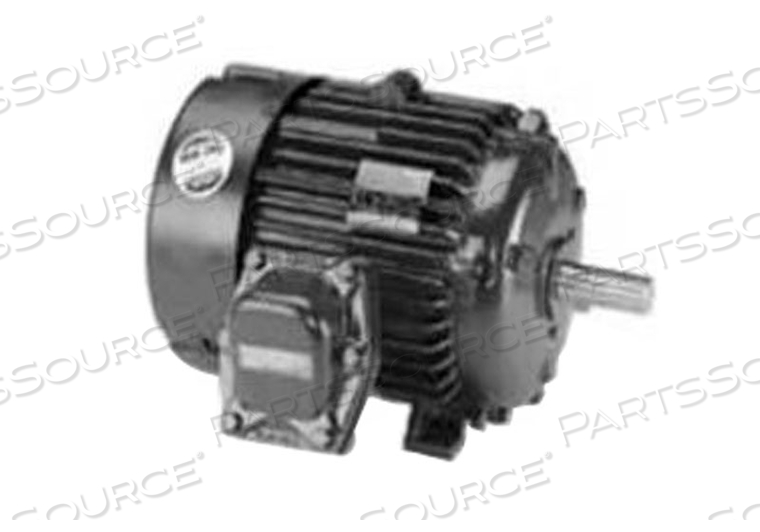

Marathon Motors Explosion Proof Motor, E570, 326TTGS6532, 50HP, 230/460V, 1800RPM, 3PH, EPFC
Marathon's Hazardous Duty motors are ideal for a wide variety of applications where hazardous fumes or dust may be present. The motors are available in three phase and single phase with ratings, in stock, from 1/4 HP through 300 HP.
Marathon's Hazardous Duty motors are ideal for a wide variety of applications where hazardous fumes or dust may be present. The motors are available in three phase and single phase with ratings, in stock, from 1/4 HP through 300 HP.
Technical Specs
P/N: E570 Key Specs
Item
EXPLOSION PROOF MOTOR, 326TTGS6532, 50HP, 230/460V, 1800RPM, 3PH, EPFC
OEM
Marathon Motors
OEM #
E570
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
50 Hertz FL Amps
120/60
50 Hertz FL Eff
93.60 Percent
50 Hertz HP
40
50 Hertz SF
1.15
50 Hertz Voltage
190/380
50 Hertz kW
30
60 Hertz RPM
1800
60 Hertz kW
37
Ambient Temperature (°C)
40
Assembly
F1 Only
Bearing Drive End
6312
CE
N
Country of Origin
USA
Drive End Bearing Size
6312
Duty
Continuous
Enclosure
EPFC
Enclosure Type
Explosion Proof
Frame
326T
Full Load Amps
123/61.5
Full Load Efficiency
94.5
Hazardous Location
EXP PROOF CL I GR C&D CL II GR F&G T3B
Hertz
60/50
Horsepower
50
IP Code
54
Insulation Class
F
Inverter Speed Range
Constant 2:1
Is Motor
Yes
Model Number
326TTGS6532
Motor RPM 50 Hertz
1500
Motor RPM 60 Hertz
1800
Mounting
Rigid
NEMA Design
B
Opposite End Bearing
Ball
Opposite End Bearing Size
6311
Orientation
Horizontal
Phase
3
RPM
1800/1500
RPM Range
1701-1800
Service Factor
1.15
Starting Type
Line or Inverter
Thermal Protection
Thermostats (Normally Closed)
Ul
UL Listed
Voltage
230/460
Weight
791
kVA-Code
F
