OEM#: 5KC48UN6052New OEM Original Outright

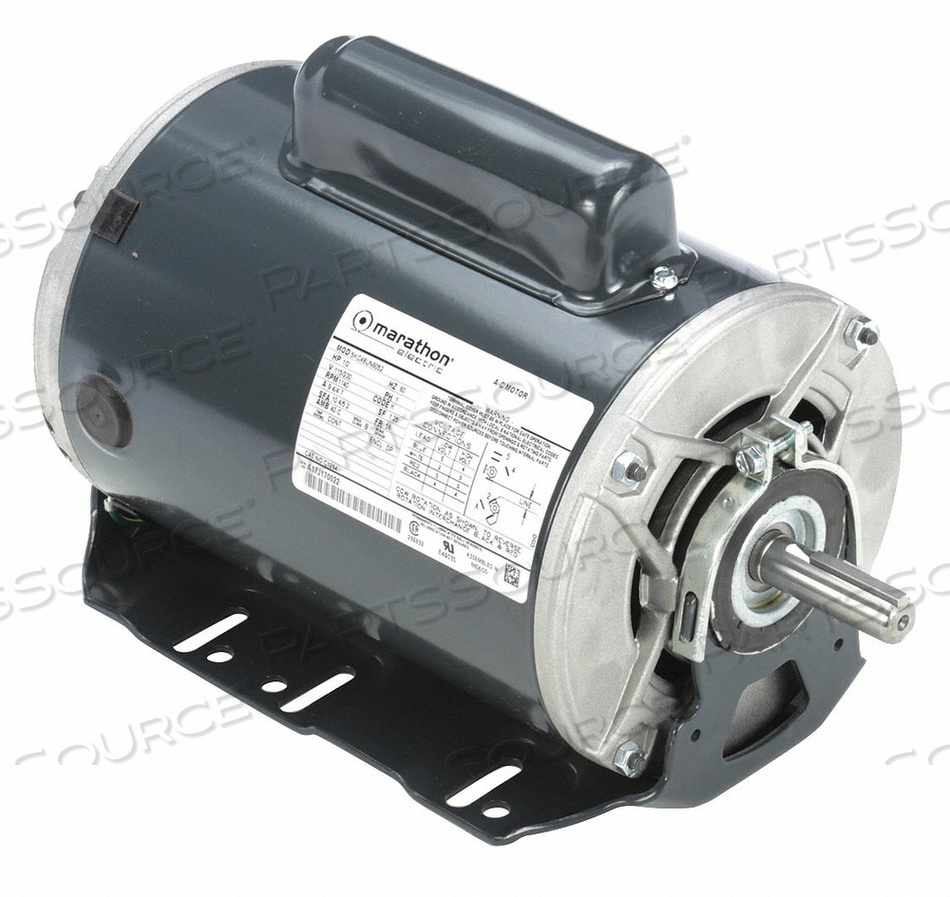

GP MTR CS ODP 1/2 HP 1140 RPM 56 by Marathon Motors
Your price:
$983.92 each
OEM#: 5KC48UN6052GP MTR CS ODP 1/2 HP 1140 RPM 56 by Marathon Motors
New OEM Original Outright
Your price:
$983.92 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 5KC48UN6052 Key Specs
Item
GP MTR CS ODP 1/2 HP 1140 RPM 56
OEM
Marathon Motors
OEM #
5KC48UN6052
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Country of Origin
Mexico
Duty
Continuous
Frame
56
Full Load Amps
9.4/4.7
HP
1/2 hp
Hz
60
Ins. Class
B
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
Capacitor-Start
Motor Efficiency Group
Standard Efficient
Motor Enclosure Design
Open Dripproof
Motor Frame Material
Rolled Steel
Motor Mounting Type
Cradle Base
Motor Service Factor
1.25
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1140
Nominal Efficiency
57.7 %
Number of Speeds
1
Phase
1
RPM Group
1101-1200
RPM Range
1101-1200
Shaft Diameter
5/8 in
Shaft Length
1-7/8 in
Standards
CSA (MC236833), UL (E46035)
Voltage
115/230
