OEM#: 5KC36LN26New OEM Original Outright

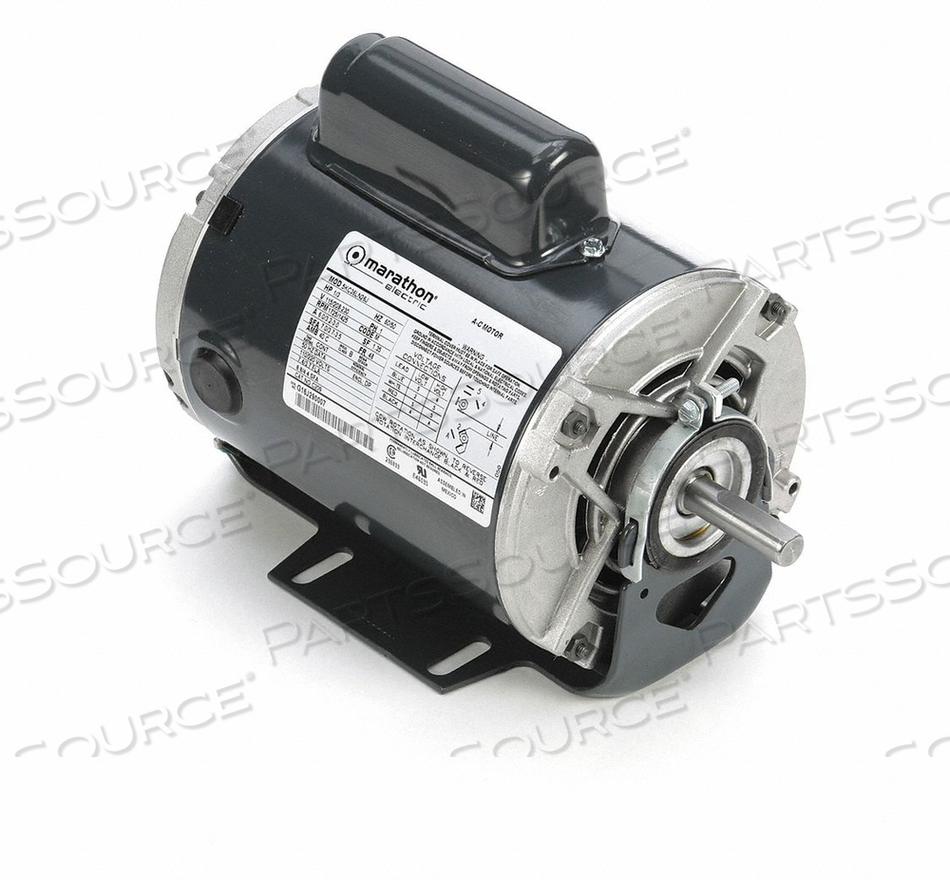

MOTOR 1/3 HP 1725/1425 RPM 115/208-230V by Marathon Motors
Your price:
$473.90 each
OEM#: 5KC36LN26MOTOR 1/3 HP 1725/1425 RPM 115/208-230V by Marathon Motors
New OEM Original Outright
Your price:
$473.90 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 5KC36LN26 Key Specs
Item
MOTOR 1/3 HP 1725/1425 RPM 115/208-230V
OEM
Marathon Motors
OEM #
5KC36LN26
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Country of Origin
Mexico
Duty
Continuous
Frame
48
Full Load Amps
6/3.2-3
HP
1/3
Hz
60/50
Ins. Class
B
Inverter Rated
No
Length Less Shaft
8-1/2 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
Capacitor-Start
Motor Efficiency Group
Standard Efficient
Motor Enclosure Design
Open Dripproof
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Cradle Base
Motor Service Factor
1.35
Motor Shaft Design
Flat
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1725
Nominal Efficiency
59.5 %
Number of Speeds
1
Overall Length
10 in
Phase
1
Shaft Diameter
1/2 in
Shaft Length
1-1/2 in
Standards
CSA (MC236833), UL (E46035)
Voltage
115/208-230
