OEM#: 5K32GN30New OEM Original Outright

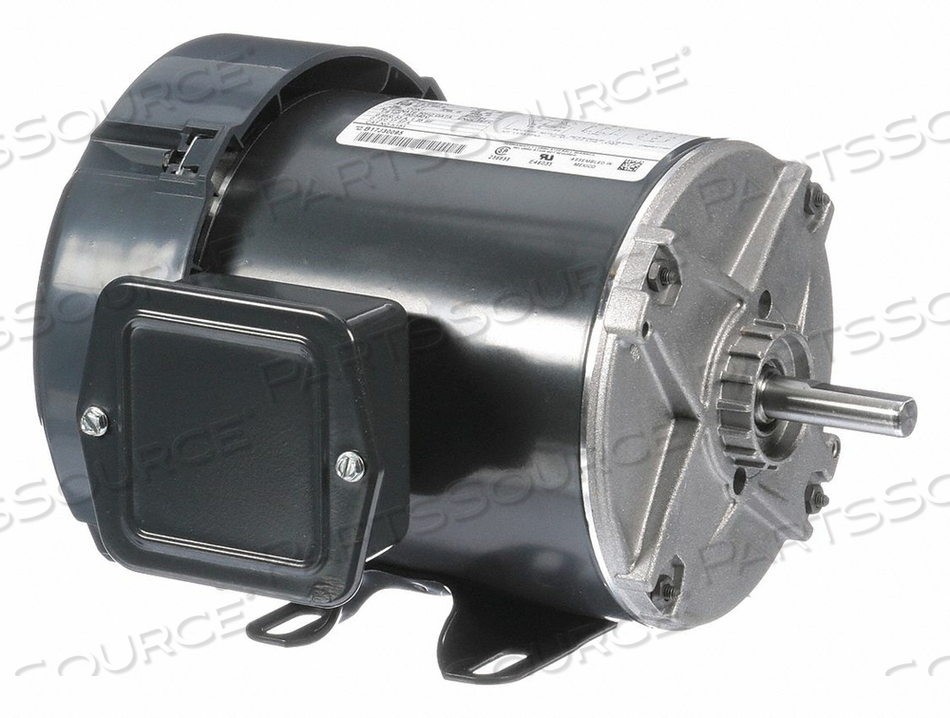

MOTOR 3-PH 1/4 HP 1725 RPM 208-230/460V by Marathon Motors
Your price:
$541.26 each
OEM#: 5K32GN30MOTOR 3-PH 1/4 HP 1725 RPM 208-230/460V by Marathon Motors
New OEM Original Outright
Your price:
$541.26 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 5K32GN30 Key Specs
Item
MOTOR 3-PH 1/4 HP 1725 RPM 208-230/460V
OEM
Marathon Motors
OEM #
5K32GN30
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Country of Origin
Mexico
Duty
Continuous
Frame
48
Full Load Amps
1.3-1.4/0.7
HP
1/4 in
Hz
60
Ins. Class
B
Inverter Rated
Yes
Length Less Shaft
8-7/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
Standard Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Service Factor
1.35
Motor Shaft Design
Flat
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1725
Nominal Efficiency
62 %
Number of Speeds
1
Overall Length
9-15/16 in
Phase
3
Shaft Diameter
1/2 in
Shaft Length
1-1/2 in
Standards
UL (E46035), CSA (MC236833)
Voltage
208-230/460
