OEM#: 445THFN8036New OEM Original Outright

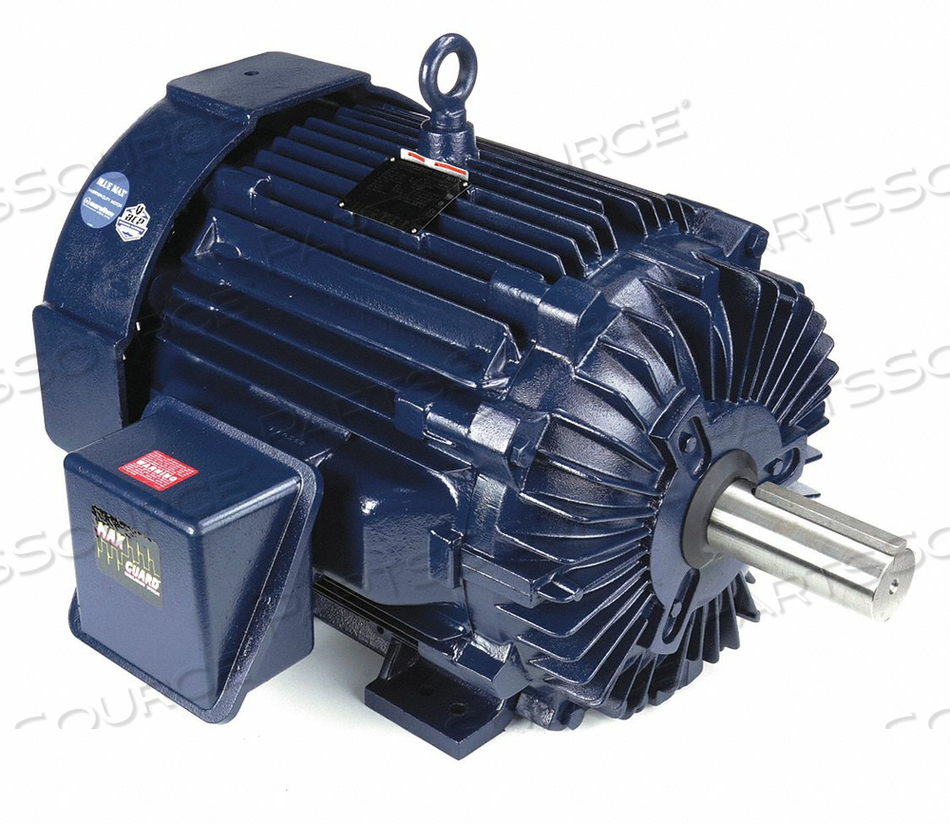

VECTOR MOTOR 3-PHASE 150HP 460V by Marathon Motors

Your price:
$39,350.47 eachReady to ship
HomeMarathon Motors445thfn8036
VECTOR MOTOR 3-PHASE 150HP 460V by Marathon Motors
VECTOR MOTOR 3-PHASE 150HP 460V by Marathon Motors

OEM#: 445THFN8036
VECTOR MOTOR 3-PHASE 150HP 460V by Marathon Motors

New OEM Original Outright
Your price:
$39,350.47 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 445THFN8036 Key Specs
Item
VECTOR MOTOR 3-PHASE 150HP 460V
OEM
Marathon Motors
OEM #
445THFN8036
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Ambient Temperature
40 Degrees C
Base
Rigid
Country of Origin
USA
Duty
Continuous
Encoder Acceptable
Yes
Encoder Shaft
1 in x 2 in
Finish
Blue Enamel
Frame
445T
Full Load Amps
170
HP
150
Hz
60
Ins. Class
H
Insulation Feature
Class F
Max Operating Frequency
90 Hz
Max Speed
2800 rpm
Motor Application
Crane
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
Standard Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Service Factor
1
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
T-Stat
NEMA Design
A
Nameplate RPM
1790
Nominal Efficiency
75.5%
Overall Length
1 in x 2 in
Phase
3
Shaft Diameter
1 in x 2 in
Shaft Length
1 in x 2 in
Speed Range
2000:1 CT
Standards
CE, CSA Certified (LR2025), UL Recognized (E49747)
Voltage
460
