OEM#: 404TTDCD6060New OEM Original Outright

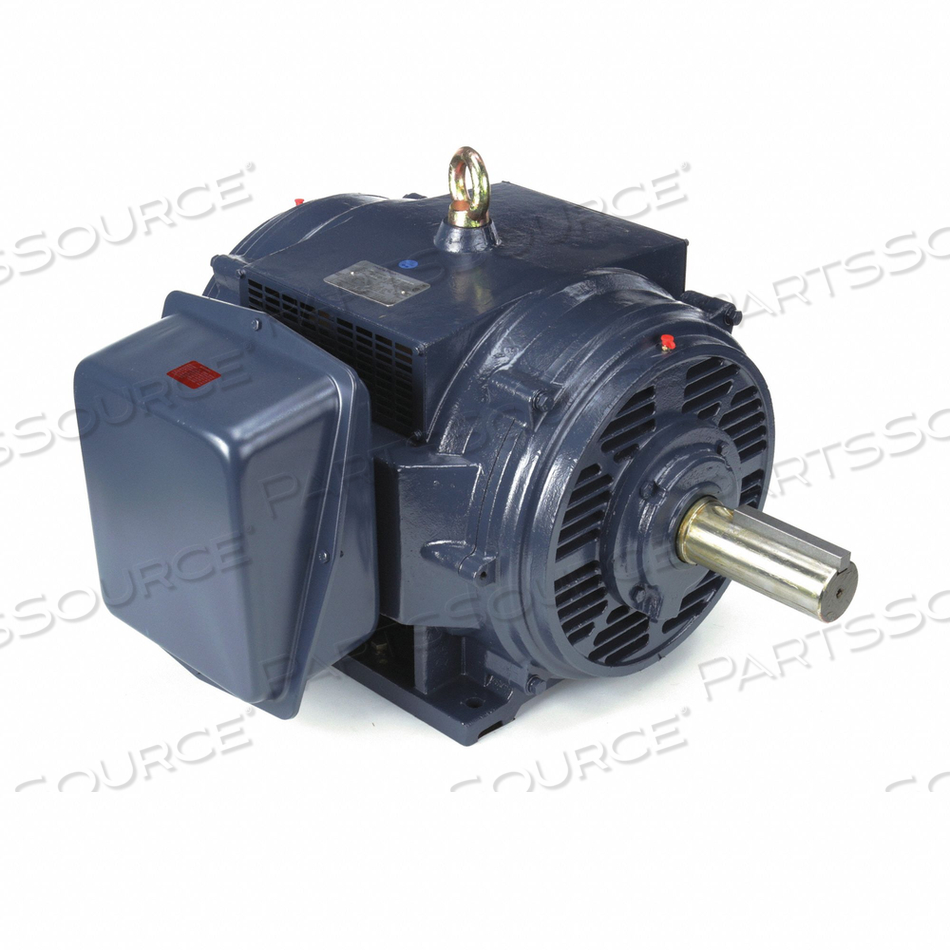

MOTOR 3-PH 100 HP 1790 RPM 230/460V by Marathon Motors
Your price:
$11,969.88 each
OEM#: 404TTDCD6060MOTOR 3-PH 100 HP 1790 RPM 230/460V by Marathon Motors
New OEM Original Outright
Your price:
$11,969.88 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 404TTDCD6060 Key Specs
Item
MOTOR 3-PH 100 HP 1790 RPM 230/460V
OEM
Marathon Motors
OEM #
404TTDCD6060
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC003A
Country of Origin
Mexico
Duty
Continuous
Frame
404T
Full Load Amps
226/113
HP
100
Hz
60/50
Includes
Conduit Box
Ins. Class
F
Inverter Rated
Yes
Length Less Shaft
29-15/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Open Dripproof
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1790
Nominal Efficiency
78.5 %
Number of Speeds
1
Overall Length
37 3/16 in
Phase
3
Shaft Diameter
2-7/8 in
Shaft Length
7-1/4 in
Standards
UL (E49747), CSA (LR2025), CE
Voltage
230/460
