OEM#: 324THFPA8028New OEM Original Outright

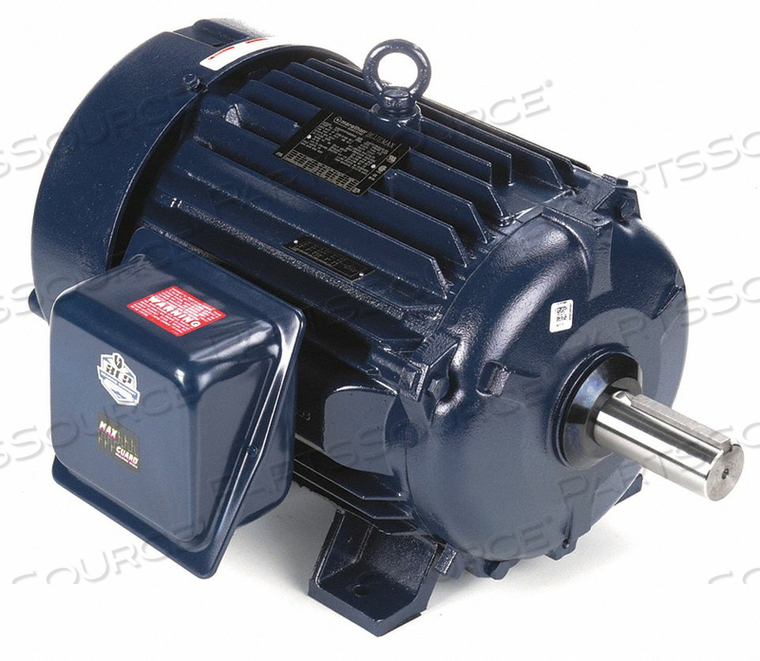

VECTOR MOTOR 3-PHASE 40HP 230/460V by Marathon Motors
Your price:
$12,729.37 each
OEM#: 324THFPA8028VECTOR MOTOR 3-PHASE 40HP 230/460V by Marathon Motors
New OEM Original Outright
Your price:
$12,729.37 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 324THFPA8028 Key Specs
Item
VECTOR MOTOR 3-PHASE 40HP 230/460V
OEM
Marathon Motors
OEM #
324THFPA8028
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Ambient Temperature
40 Degrees C
Approvals, Certifications & Standards
CE, CSA Certified (LR2025), UL Recognized (E49747)
Base
Rigid
Country of Origin
USA
Duty
Continuous
Encoder Acceptable
Yes
Encoder Shaft
1 in x 1-3/4 in
Finish
Blue Enamel
Frame
324T
Full Load Amps
100/50
Horsepower
40
Hz
60
Insulation Class
H
Insulation Feature
Class F
Maximum Operating Frequency
90 Hz
Maximum Speed
4000 rpm
Motor Application
Crane
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
Standard Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Service Factor
1
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
T-Stat
NEMA Design
B
Nameplate RPM
1770
Nominal Efficiency
95.4%
Overall Length
1 in x 1-3/4 in
Phase
3
Shaft Diameter
1 in x 1-3/4 in
Shaft Length
1 in x 1-3/4 in
Speed Range
2000:1 CT
Voltage
230/460
