OEM#: 284TTFCD6026New OEM Original Outright

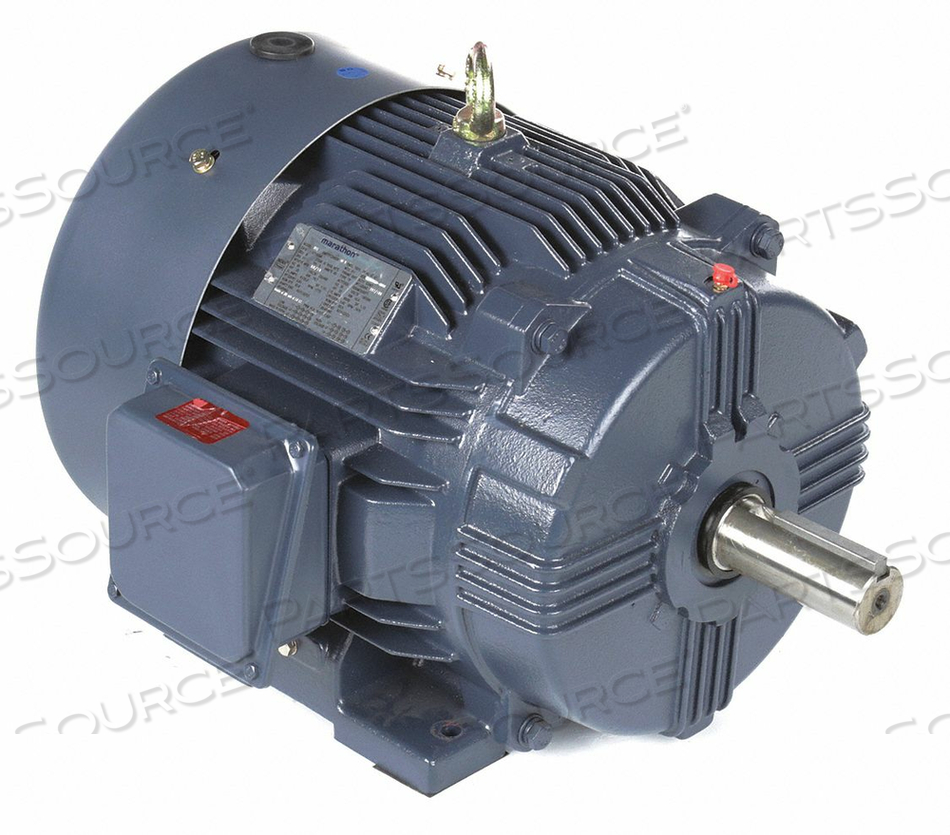

MOTOR 3-PH 25 HP 1780 RPM 230/460V by Marathon Motors
Your price:
$3,834.13 each
OEM#: 284TTFCD6026MOTOR 3-PH 25 HP 1780 RPM 230/460V by Marathon Motors
New OEM Original Outright
Your price:
$3,834.13 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 284TTFCD6026 Key Specs
Item
MOTOR 3-PH 25 HP 1780 RPM 230/460V
OEM
Marathon Motors
OEM #
284TTFCD6026
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC003A
Country of Origin
Mexico
Duty
Continuous
Frame
284T
Full Load Amps
66-61/30.5
HP
25
Hz
60/50
Includes
Conduit Box
Ins. Class
F
Inverter Rated
Yes
Length Less Shaft
25-9/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1780
Nominal Efficiency
94.5 %
Number of Speeds
1
Overall Length
30-3/16 in
Phase
3
Shaft Diameter
1-7/8 in
Shaft Length
4-5/8 in
Standards
UL (E49747), CSA (LR2025), CE
Voltage
230/460
