OEM#: 256TTFCD16574New OEM Original Outright

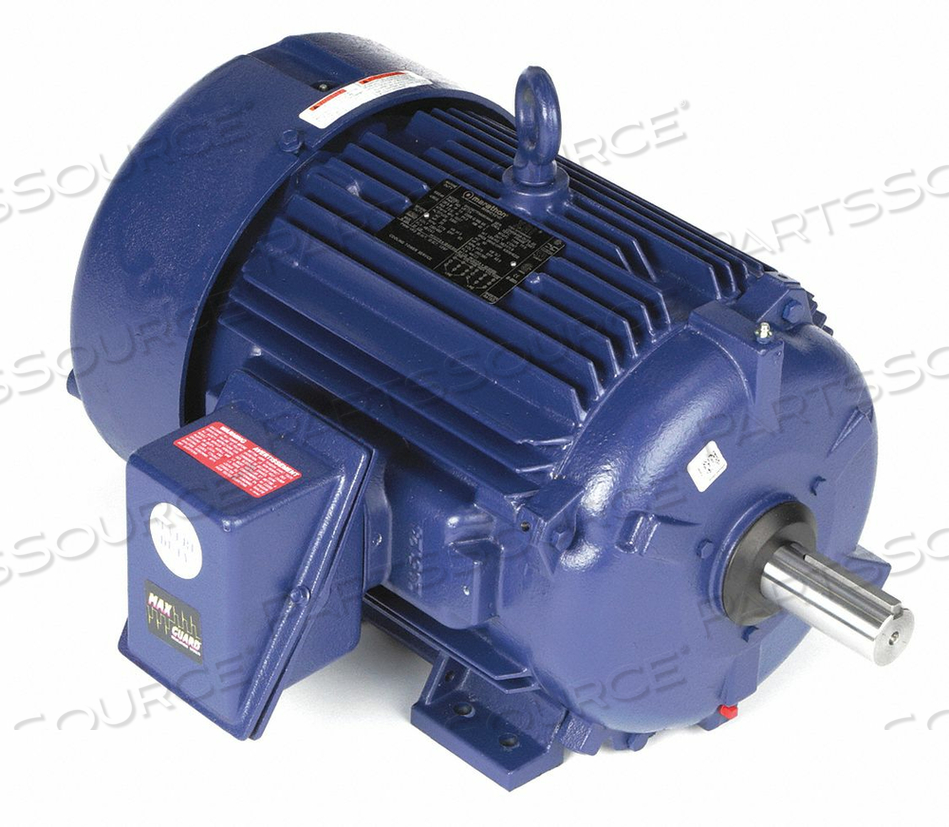

CT MOTOR 3-PH TEFC 20 HP 230/460V by Marathon Motors
Your price:
$4,819.33 each
OEM#: 256TTFCD16574CT MOTOR 3-PH TEFC 20 HP 230/460V by Marathon Motors
New OEM Original Outright
Your price:
$4,819.33 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 256TTFCD16574 Key Specs
Item
CT MOTOR 3-PH TEFC 20 HP 230/460V
OEM
Marathon Motors
OEM #
256TTFCD16574
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Ambient Temperature
40 Degrees C
CC Number
CC003A
Country of Origin
Mexico
Duty
Continuous
Finish
Blue Epoxy
Frame
256T
Full Load Amps
48/24.1
HP
20
Hz
60/50
Ins. Class
F
Length Less Shaft
21 in
Motor Application
Cooling Tower
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Service Factor
1.15
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1775
Nominal Efficiency
92.4%
Overall Length
1-5/8 in
Phase
3
Shaft Diameter
1-5/8 in
Shaft Length
1-5/8 in
Standards
CSA (LR2025), IP55, UL (E49747
Voltage
230/460
