OEM#: 213TTDBD6039New OEM Original Outright

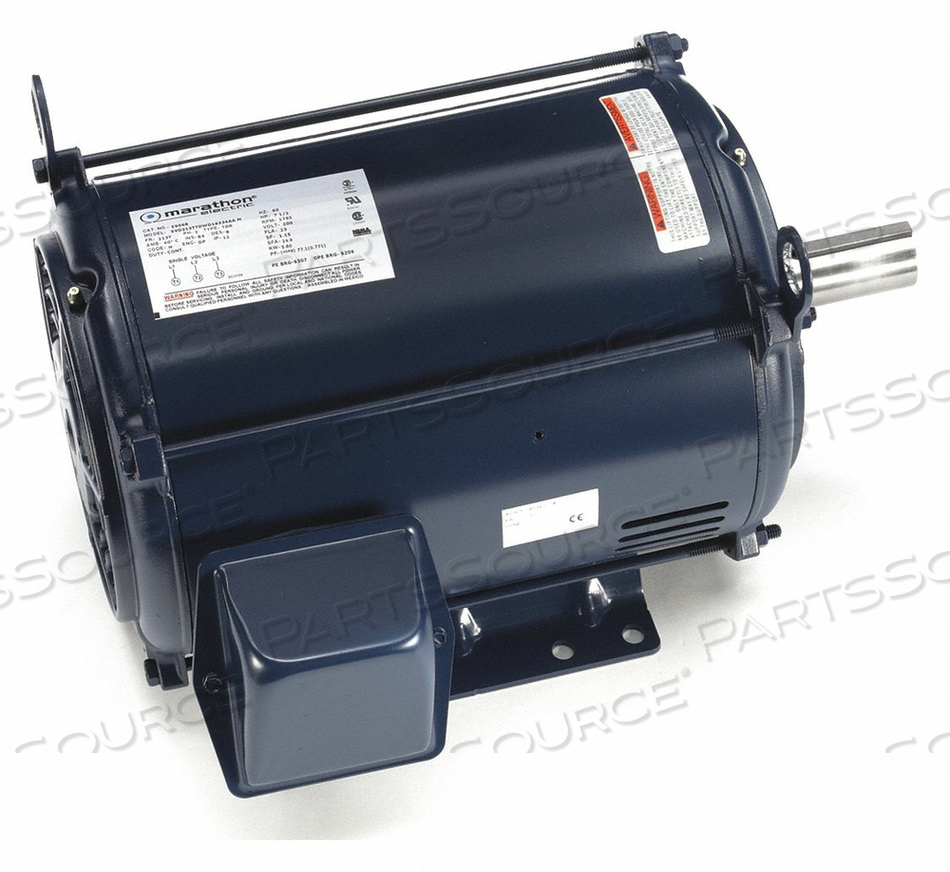

GENERAL PURPOSE MOTOR 7-1/2 HP 23.0A by Marathon Motors
Your price:
$1,326.19 each
OEM#: 213TTDBD6039GENERAL PURPOSE MOTOR 7-1/2 HP 23.0A by Marathon Motors
New OEM Original Outright
Your price:
$1,326.19 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 213TTDBD6039 Key Specs
Item
GENERAL PURPOSE MOTOR 7-1/2 HP 23.0A
OEM
Marathon Motors
OEM #
213TTDBD6039
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC003A
Country of Origin
Mexico
Duty
Continuous
Frame
213T
Full Load Amps
23
HP
7-1/2 in
Hz
60
Ins. Class
B
Inverter Rated
No
Length Less Shaft
13-13/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Open Dripproof
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1765
Nominal Efficiency
81.5 %
Number of Speeds
1
Overall Length
17-5/16 in
Phase
3
Shaft Diameter
1-3/8 in
Shaft Length
3-1/2 in
Standards
CSA (LR2025), UL (E49747)
Voltage
200
