OEM#: 213TTDBD6082New OEM Original Outright

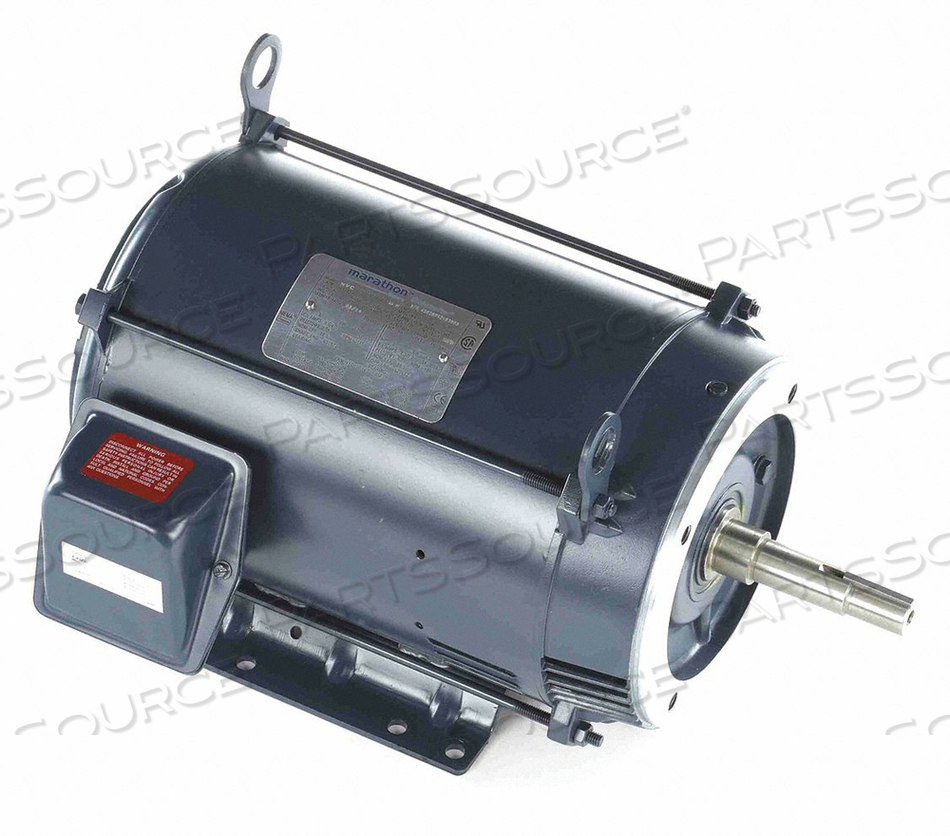

CLOSE-COUPLED PUMP MOTOR 3 HP 8.8/4.4A by Marathon Motors
Your price:
$1,672.17 each
OEM#: 213TTDBD6082CLOSE-COUPLED PUMP MOTOR 3 HP 8.8/4.4A by Marathon Motors
New OEM Original Outright
Your price:
$1,672.17 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 213TTDBD6082 Key Specs
Item
CLOSE-COUPLED PUMP MOTOR 3 HP 8.8/4.4A
OEM
Marathon Motors
OEM #
213TTDBD6082
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC003A
Country of Origin
Mexico
Duty
Continuous
Frame
213M
Full Load Amps
8.8/4.4
HP
3
Hz
60/50
Ins. Class
F
Inverter Rated
Yes
Length Less Shaft
15 in
Max Ambient Temperature
40 Degrees C
Motor Application
Pump
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Open Dripproof
Motor Frame Material
Rolled Steel
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Motor Shaft Design
JM Threaded
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Close-Coupled Pump
Motor Thermal Protection
None
Nameplate RPM
1180
Nominal Efficiency
91.7 %
Overall Length
19-1/4 in
Phase
3
Shaft Diameter
7/8 in
Shaft Length
4-1/4 in
Standards
CSA Certified (LR2025), UL Recognized (E49747)
Voltage
230/460
Voltage Compatibility
220-230/460, 230/460, 460
