OEM#: 213THTL7736New OEM Original Outright

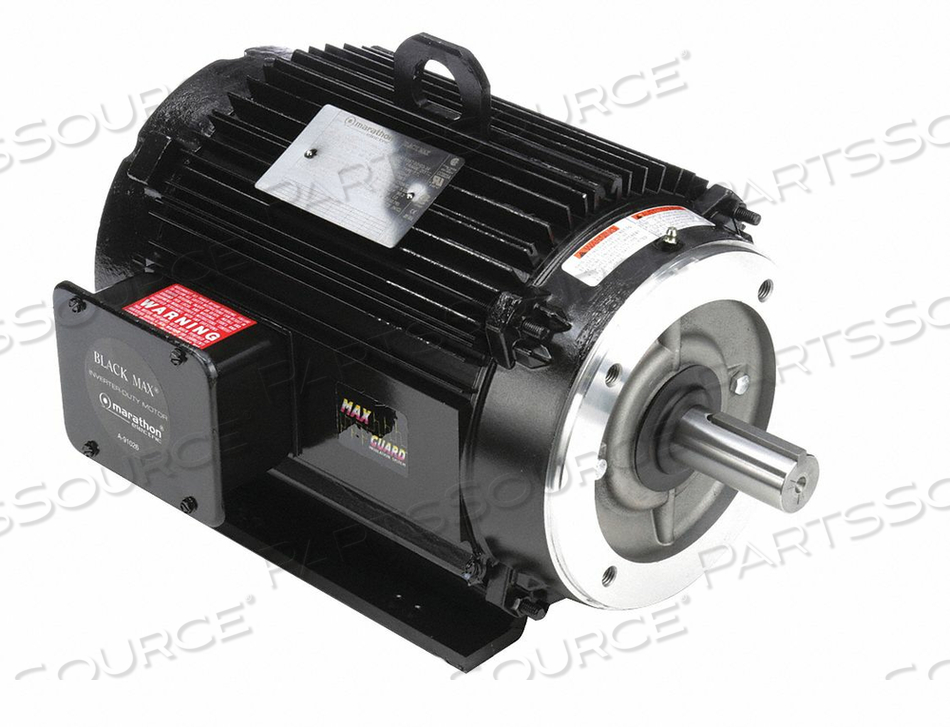

VECTOR MOTOR 7-1/2 HP 22.3 LB-FT 575V by Marathon Motors
Your price:
$4,652.39 each
OEM#: 213THTL7736VECTOR MOTOR 7-1/2 HP 22.3 LB-FT 575V by Marathon Motors
New OEM Original Outright
Your price:
$4,652.39 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 213THTL7736 Key Specs
Item
VECTOR MOTOR 7-1/2 HP 22.3 LB-FT 575V
OEM
Marathon Motors
OEM #
213THTL7736
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Ambient Temperature
40 Degrees C
Base
Rigid
Country of Origin
USA
Duty
Continuous
Encoder Acceptable
Yes
Encoder Shaft
Yes
Finish
Black
Frame
213TC
Full Load Amps
8.4
HP
7-1/2 in
Hz
60
Ins. Class
F
Insulation Feature
MAX GUARD Class F
Max Operating Frequency
120 Hz
Maximum Speed
4,200 RPM
Motor Application
Crane
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
Energy Efficient
Motor Enclosure Design
Totally Enclosed Nonventilated
Motor Frame Material
Cast Aluminum
Motor Mounting Position
Horizontal
Motor Mounting Type
Face/Base
Motor Service Factor
1
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
T-Stat
NEMA Design
A
Nameplate RPM
1765
Nominal Efficiency
89.5 %
Overall Length
20-9/16 in
Phase
3
RPM Range
1701-1800
Shaft Diameter
1-3/8 in
Shaft Length
3-1/8 in
Speed Range
1000:1 CT
Standards
CE, CSA Certified (LR2025), UL Listed (E49747)
Torque
22.3 lb-ft
Voltage
575
Voltage Compatibility
575
