OEM#: 184TTFBD6028New OEM Original Outright

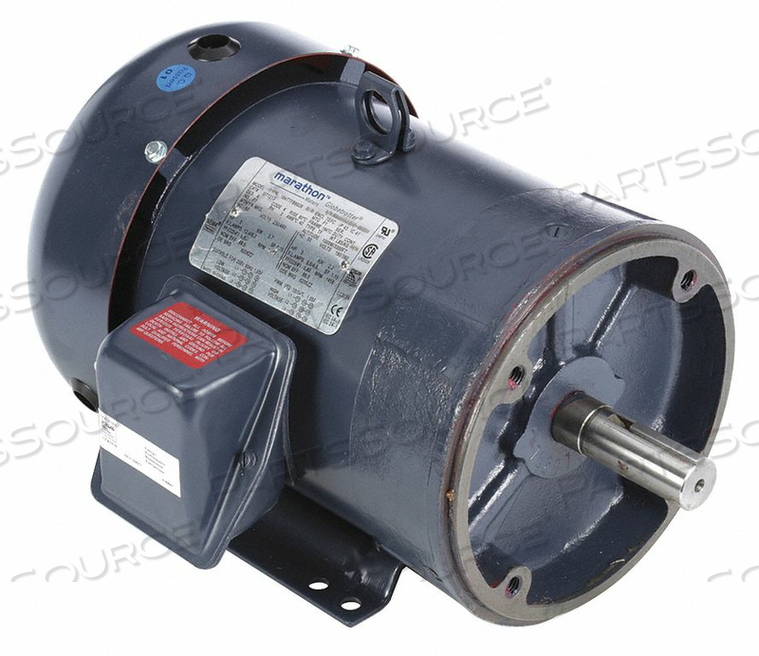

MOTOR 3-PH TEFC 5 HP 1760 RPM 230/460V by Marathon Motors
Your price:
$1,102.60 each
OEM#: 184TTFBD6028MOTOR 3-PH TEFC 5 HP 1760 RPM 230/460V by Marathon Motors
New OEM Original Outright
Your price:
$1,102.60 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 184TTFBD6028 Key Specs
Item
MOTOR 3-PH TEFC 5 HP 1760 RPM 230/460V
OEM
Marathon Motors
OEM #
184TTFBD6028
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
CC Number
CC003A
Country of Origin
Mexico
Duty
Continuous
Frame
184TC
Full Load Amps
12.4/6.2
HP
5
Hz
60/50
Ins. Class
F
Inverter Rated
No
Length Less Shaft
13-7/8 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1760
Nominal Efficiency
89.5 %
Number of Speeds
1
Overall Length
16-3/4 in
Phase
3
Shaft Diameter
1-1/8 in
Shaft Length
2-7/8 in
Standards
UL (E49747), CSA (LR2025), CE
Voltage
230/460
