OEM#: 056C17F5322New OEM Original Outright

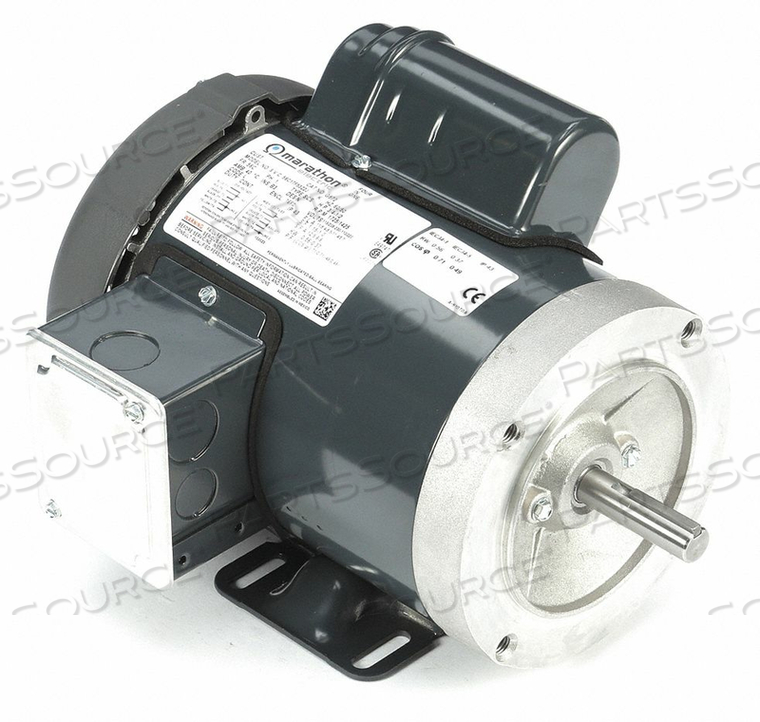

GP MOTOR CAP-STRT 3/4 HP 115/208-230 V by Marathon Motors
Your price:
$623.58 each
OEM#: 056C17F5322GP MOTOR CAP-STRT 3/4 HP 115/208-230 V by Marathon Motors
New OEM Original Outright
Your price:
$623.58 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 056C17F5322 Key Specs
Item
GP MOTOR CAP-STRT 3/4 HP 115/208-230 V
OEM
Marathon Motors
OEM #
056C17F5322
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Country of Origin
Mexico
Duty
Continuous
Frame
56C
Full Load Amps
11/5.4-5.5
HP
3/4 hp
Hz
60/50
Includes
Brake, Capacitor
Ins. Class
B
Inverter Rated
No
Length Less Shaft
10-1/4 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
Capacitor-Start
Motor Efficiency Group
Standard Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Rolled Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1725
Nominal Efficiency
82.5 %
Number of Speeds
1
Overall Length
12-5/16 in
Phase
1
RPM Group
1701-1800
RPM Range
1701-1800
Shaft Diameter
5/8 in
Shaft Length
1-7/8 in
Standards
CSA (LR2025), UL (E49747)
Voltage
115/208-230
