OEM#: 056C17F2051New OEM Original Outright

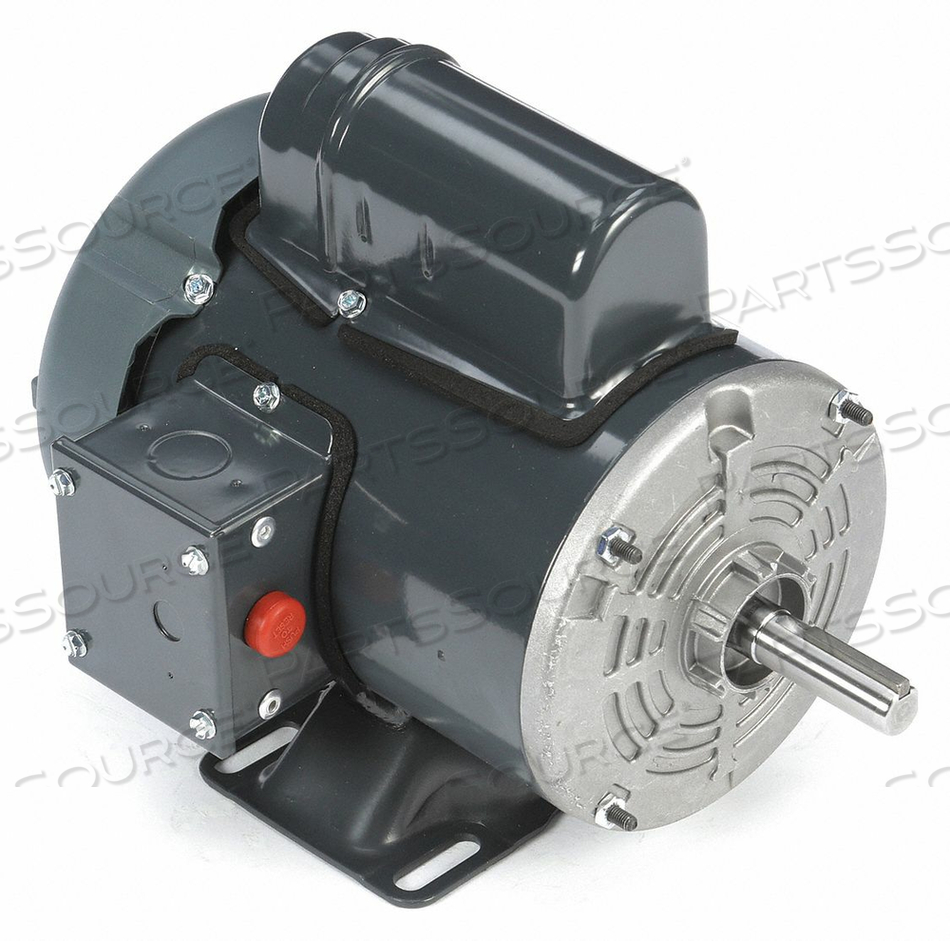

MOTOR 1/2 HP 1725 RPM 115/208-230V by Marathon Motors
Your price:
$590.21 each
OEM#: 056C17F2051MOTOR 1/2 HP 1725 RPM 115/208-230V by Marathon Motors
New OEM Original Outright
Your price:
$590.21 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 056C17F2051 Key Specs
Item
MOTOR 1/2 HP 1725 RPM 115/208-230V
OEM
Marathon Motors
OEM #
056C17F2051
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Country of Origin
Mexico
Duty
Continuous
Frame
56
Full Load Amps
8/4-4
HP
1/2
Hz
60
Ins. Class
B
Inverter Rated
No
Length Less Shaft
9-5/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
Capacitor-Start
Motor Efficiency Group
Standard Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
Manual
Nameplate RPM
1725
Nominal Efficiency
71.4 %
Number of Speeds
1
Overall Length
11-1/4 in
Phase
1
Shaft Diameter
5/8 in
Shaft Length
1-7/8 in
Standards
UL (E6312), CSA (LR2025)
Voltage
115/208-230
