OEM#: 056C17D2074New OEM Original Outright

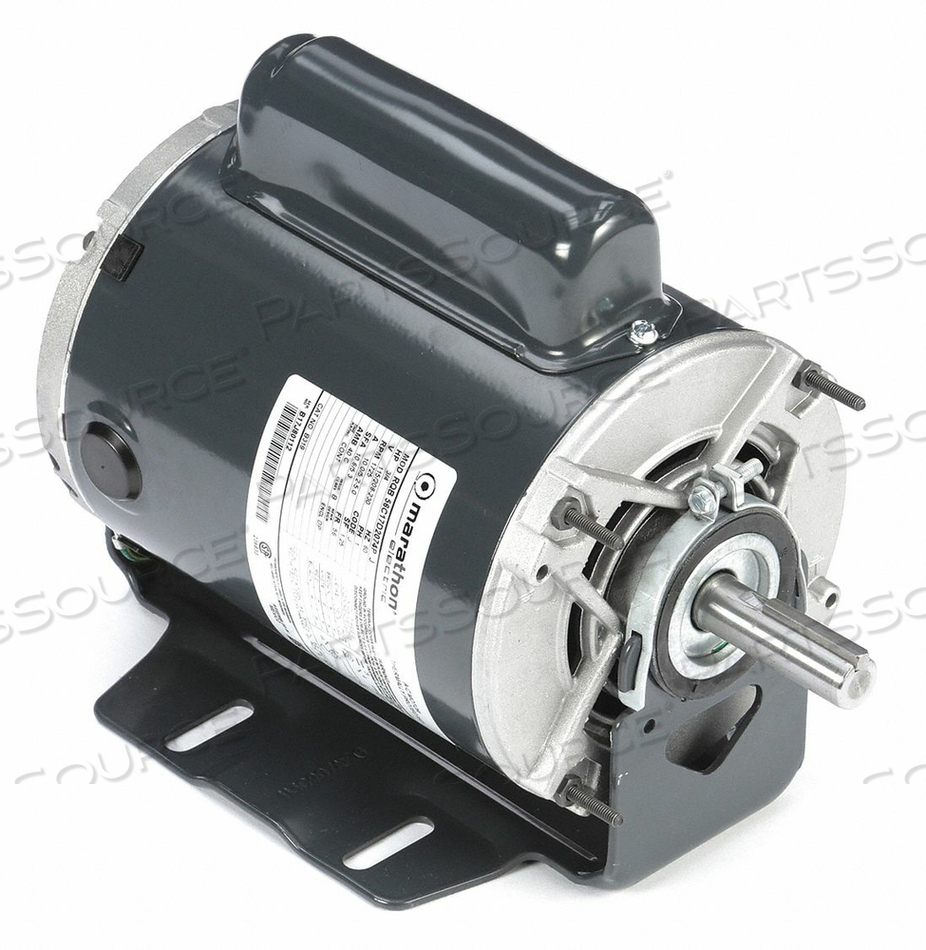

GENERAL PURPOSE MOTOR, SINGLE PHASE, MOTOR DESIGN CAPACITOR-START, 3/4 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115/208-230V AC, FU by Marathon Motors

Your price:
$455.65 each
$505.94 Savings: $50.29 (10%)
Ready to ship
HomeMarathon Motors056C17D2074
GENERAL PURPOSE MOTOR, SINGLE PHASE, MOTOR DESIGN CAPACITOR-START, 3/4 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115/208-230V AC, FU by Marathon Motors
GENERAL PURPOSE MOTOR, SINGLE PHASE, MOTOR DESIGN CAPACITOR-START, 3/4 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115/208-230V AC, FU by Marathon Motors

OEM#: 056C17D2074
GENERAL PURPOSE MOTOR, SINGLE PHASE, MOTOR DESIGN CAPACITOR-START, 3/4 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115/208-230V AC, FU by Marathon Motors

New OEM Original Outright
Your price:
$455.65 each
$505.94 Savings: $50.29 (10%)
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 056C17D2074 Key Specs
Item
GENERAL PURPOSE MOTOR, SINGLE PHASE, MOTOR DESIGN CAPACITOR-START, 3/4 HP, NAMEPLATE RPM 1,725, NO. OF SPEEDS 1, VOLTAGE 115/208-230V AC, FU
OEM
Marathon Motors
OEM #
056C17D2074
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Country of Origin
Mexico
Duty
Continuous
Frame
56
Full Load Amps
10/5.2-5
HP
3/4
Hz
60
Ins. Class
B
Inverter Rated
No
Length Less Shaft
8-13/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
Capacitor-Start
Motor Efficiency Group
Standard Efficient
Motor Enclosure Design
Open Dripproof
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Cradle Base
Motor Service Factor
1.25
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
Auto
Nameplate RPM
1725
Nominal Efficiency
75.5 %
Number of Speeds
1
Overall Length
10-3/4 in
Phase
1
Shaft Diameter
5/8 in
Shaft Length
1-7/8 in
Standards
CSA (LR2025), UL (E49747)
Voltage
115/208-230
