OEM#: 056B17F5310New OEM Original Outright

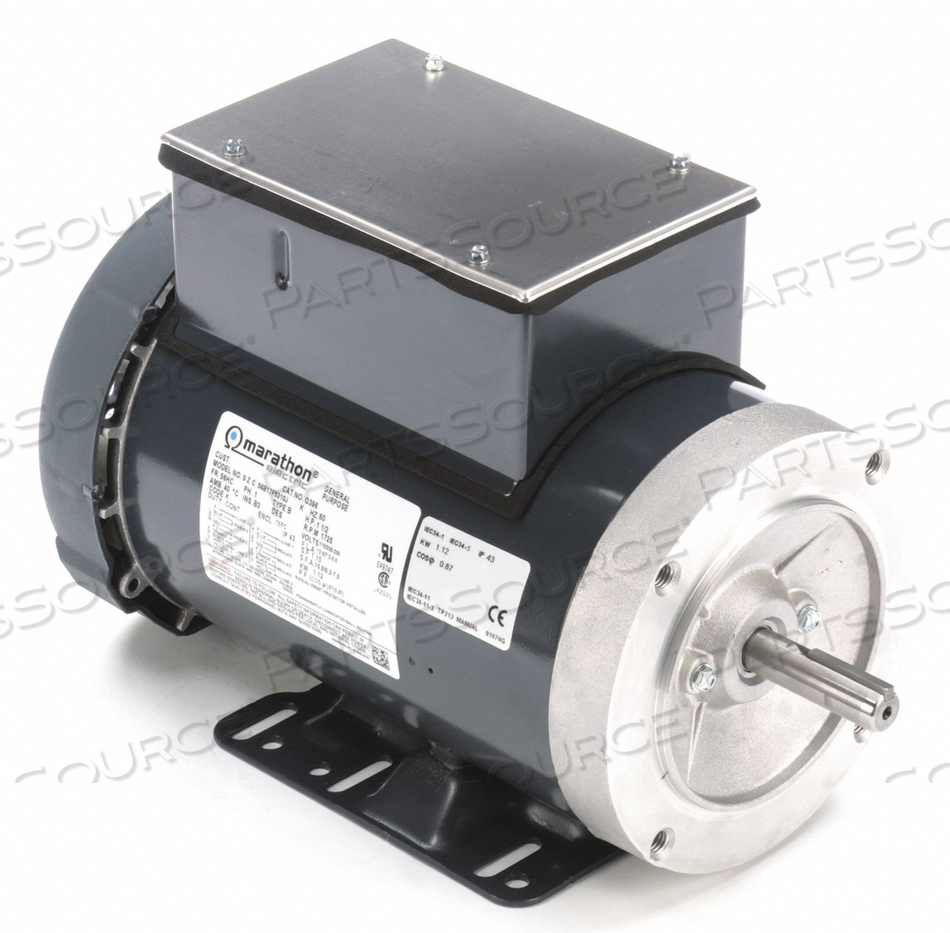

MOTOR 1.5 HP 1725 RPM 115/208-230V 56HC by Marathon Motors

Your price:
$993.41 eachReady to ship
HomeMarathon Motors056B17F5310
MOTOR 1.5 HP 1725 RPM 115/208-230V 56HC by Marathon Motors
MOTOR 1.5 HP 1725 RPM 115/208-230V 56HC by Marathon Motors

OEM#: 056B17F5310
MOTOR 1.5 HP 1725 RPM 115/208-230V 56HC by Marathon Motors

New OEM Original Outright
Your price:
$993.41 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 056B17F5310 Key Specs
Item
MOTOR 1.5 HP 1725 RPM 115/208-230V 56HC
OEM
Marathon Motors
OEM #
056B17F5310
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Ambient Temperature
40 Degrees C
Approvals, Certifications & Standards
CSA Certified (LR2025), UL Recognized (E6312)
Country of Origin
Mexico
Frame
56HC
Full Load Amps
13.6/7.5-6.8
Horsepower
1-1/2
Hz
60
Insulation Class
B
Motor Application
Pressure Washer
Motor Bearings
Ball
Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
Manual
Nameplate RPM
1725
Phase
1
Shaft Diameter
2-1/16 in
Shaft Length
2-1/16 in
Voltage
115/208-230
