OEM#: 056B17F5305New OEM Original Outright

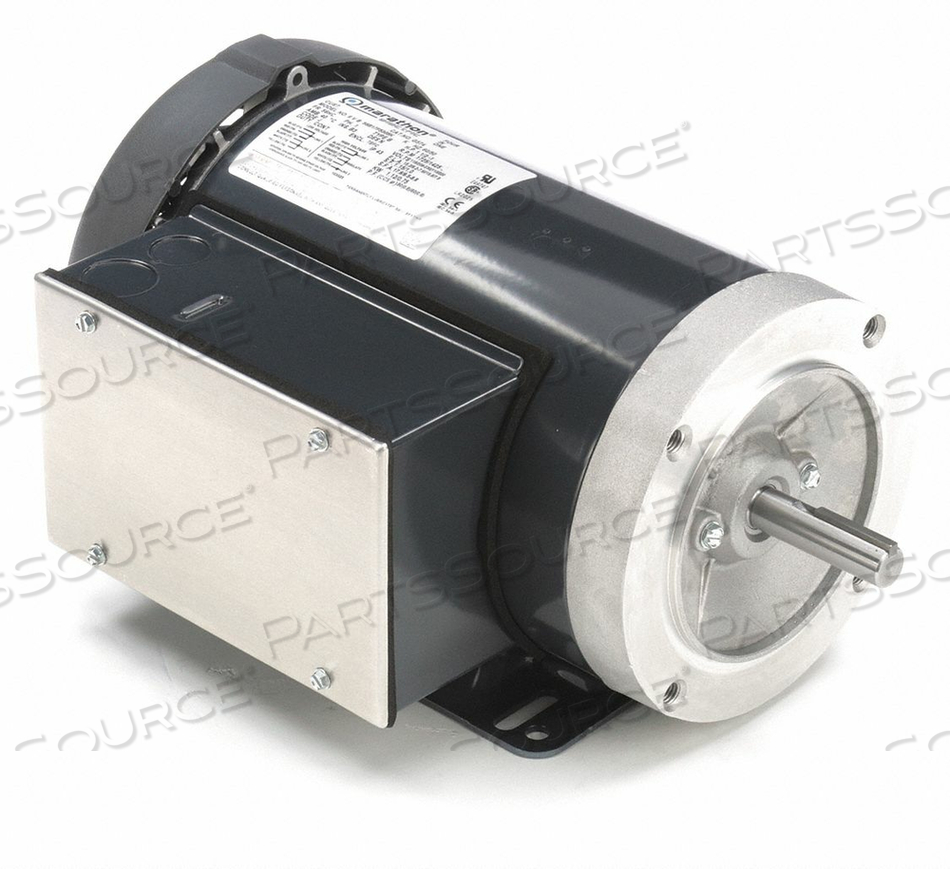

GP MOTOR CAP-STRT/CAP-RUN TEFC 1-1/2 HP by Marathon Motors
Your price:
$825.13 each
OEM#: 056B17F5305GP MOTOR CAP-STRT/CAP-RUN TEFC 1-1/2 HP by Marathon Motors
New OEM Original Outright
Your price:
$825.13 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 056B17F5305 Key Specs
Item
GP MOTOR CAP-STRT/CAP-RUN TEFC 1-1/2 HP
OEM
Marathon Motors
OEM #
056B17F5305
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Country of Origin
Mexico
Duty
Continuous
Frame
56HC
Full Load Amps
15.2/8.2-7.6
HP
1 1/2 hp
Hz
60/50
Includes
Brake, Capacitor
Ins. Class
B
Inverter Rated
No
Length Less Shaft
11-3/4 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
Capacitor-Start/Run
Motor Efficiency Group
Standard Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Rolled Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1725
Nominal Efficiency
80.4 %
Number of Speeds
1
Overall Length
13-13/16 in
Phase
1
RPM Group
1701-1800
RPM Range
1701-1800
Shaft Diameter
5/8 in
Shaft Length
2-1/16 in
Standards
CSA (LR2025), UL (E49747)
Voltage
115/208-230
