MULTI-DETECTOR DIGITAL SURVEY METER - 6.5 IN by Ludlum Measurements
OEM#: 48-4036MULTI-DETECTOR DIGITAL SURVEY METER - 6.5 IN by Ludlum Measurements
Multi-Detector, Digital Survey Meter, 6.5 IN Height
Shipment restricted to US and Canada

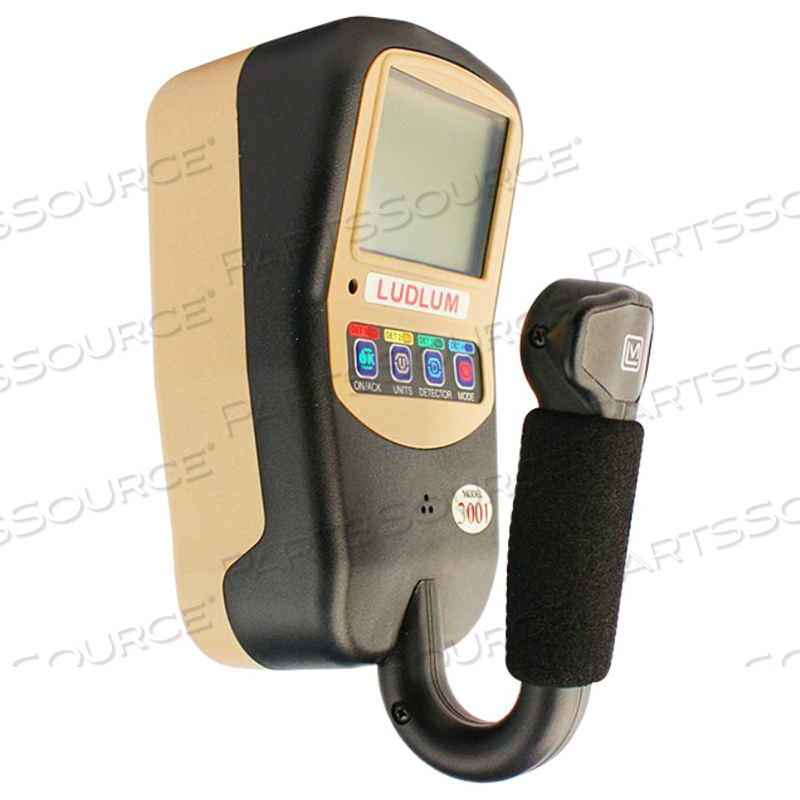

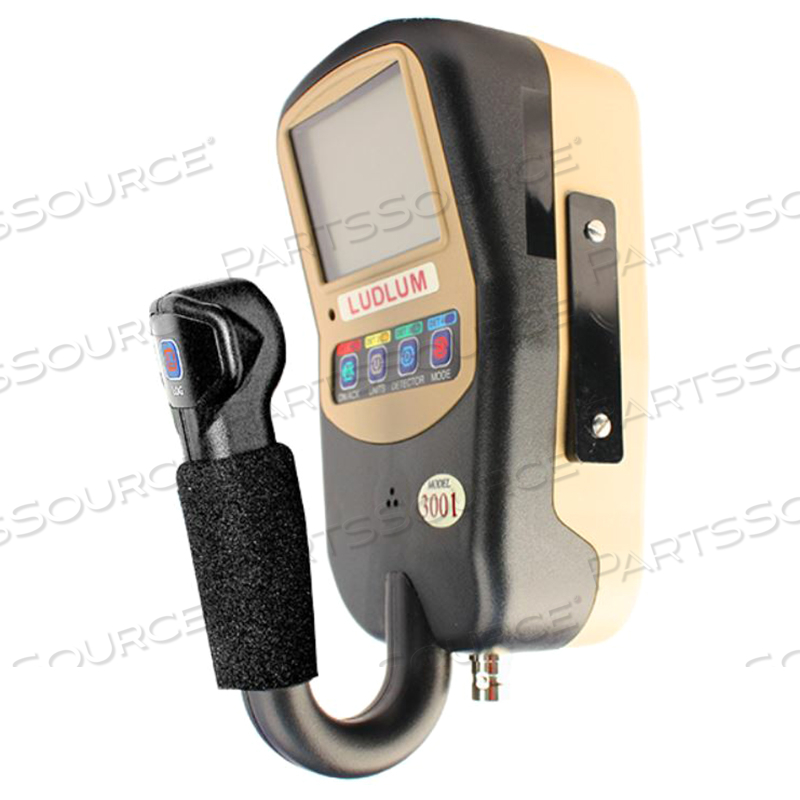

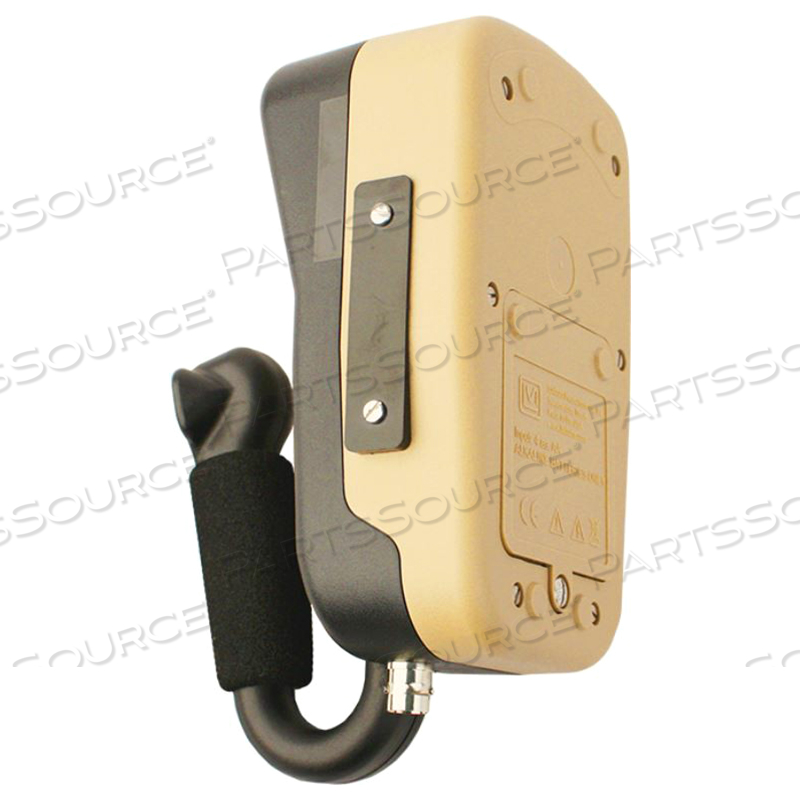

The Model 3001 is a durable, lightweight instrument designed for alpha, beta, or gamma radiation survey. It can support up to four external detectors, each with its own set of calibration and user parameters. The instrument features a large, easy-to-read LCD screen and audible alarms and is controlled using a simple five-button interface. The unit body is made of high-impact plastic and splash resistant construction allows the instrument to be used outdoors.
Three modes of operation are available – RATE, MAX, and COUNT – which can be selected by pressing the MODE button. Measurements can be collected in two sets of units (primary and secondary) for RATE and MAX modes in cps, cpm, Bq, dpm, mR/hr, or μSv/h units. The user can switch between two sets of chosen units by pressing the UNITS button. The DETECTOR is used to switch between the active detector settings, indicated by the colored LEDs above the control buttons. When enabled with the optional Lumic Data Logger Kit (see Options), data can be logged in any of the operational modes using the LOG button on the handle. Up to 1000 data points can be stored internally.
Instrument setup can be done either through the front-panel controls of via the Lumic Calibration Kit (see Options). The Model 3001 is shipped ready to use with batteries and calibration certificate.
- 4 selectable & configurable detector settings
- Large backlit lcd for ease of reading
- Lighter weight yet ruggedly built
- Linearity: within 10% of true value
- Rate, max, and count modes of operation
- Splash-resistant construction for outdoor use
- USB port
- 4-button intuitive interface for easy operation
- All-digital calibration
- Autoranging
- Backlight: Built-in ambient light sensor automatically activates LED backlight, unless internal dipswitch is set to continuous-On (will reduce battery life)
- Data logging: can store up to 1000 data points internally. Requires lumic data logger kit, see options
- Datalogging and headphone options
- Dead Time Correction: Employs first and second order corrections for extended performance
- If the reading should exceed the predefined detector range, the instrument will flash a maximum reading and trigger an audio warning
The Model 3001 is a durable, lightweight instrument designed for alpha, beta, or gamma radiation survey. It can support up to four external detectors, each with its own set of calibration and user parameters. The instrument features a large, easy-to-read LCD screen and audible alarms and is controlled using a simple five-button interface. The unit body is made of high-impact plastic and splash resistant construction allows the instrument to be used outdoors.
Three modes of operation are available – RATE, MAX, and COUNT – which can be selected by pressing the MODE button. Measurements can be collected in two sets of units (primary and secondary) for RATE and MAX modes in cps, cpm, Bq, dpm, mR/hr, or μSv/h units. The user can switch between two sets of chosen units by pressing the UNITS button. The DETECTOR is used to switch between the active detector settings, indicated by the colored LEDs above the control buttons. When enabled with the optional Lumic Data Logger Kit (see Options), data can be logged in any of the operational modes using the LOG button on the handle. Up to 1000 data points can be stored internally.
Instrument setup can be done either through the front-panel controls of via the Lumic Calibration Kit (see Options). The Model 3001 is shipped ready to use with batteries and calibration certificate.
- Ludlum Measurements
- MODEL 3001
The Model 3001 is a durable, lightweight instrument designed for alpha, beta, or gamma radiation survey. It can support up to four external detectors, each with its own set of calibration and user parameters. The instrument features a large, easy-to-read LCD screen and audible alarms and is controlled using a simple five-button interface. The unit body is made of high-impact plastic and splash resistant construction allows the instrument to be used outdoors.
Three modes of operation are available – RATE, MAX, and COUNT – which can be selected by pressing the MODE button. Measurements can be collected in two sets of units (primary and secondary) for RATE and MAX modes in cps, cpm, Bq, dpm, mR/hr, or μSv/h units. The user can switch between two sets of chosen units by pressing the UNITS button. The DETECTOR is used to switch between the active detector settings, indicated by the colored LEDs above the control buttons. When enabled with the optional Lumic Data Logger Kit (see Options), data can be logged in any of the operational modes using the LOG button on the handle. Up to 1000 data points can be stored internally.
Instrument setup can be done either through the front-panel controls of via the Lumic Calibration Kit (see Options). The Model 3001 is shipped ready to use with batteries and calibration certificate.
- 4 selectable & configurable detector settings
- Large backlit lcd for ease of reading
- Lighter weight yet ruggedly built
- Linearity: within 10% of true value
- Rate, max, and count modes of operation
- Splash-resistant construction for outdoor use
- USB port
- 4-button intuitive interface for easy operation
- All-digital calibration
- Autoranging
- Backlight: Built-in ambient light sensor automatically activates LED backlight, unless internal dipswitch is set to continuous-On (will reduce battery life)
- Data logging: can store up to 1000 data points internally. Requires lumic data logger kit, see options
- Datalogging and headphone options
- Dead Time Correction: Employs first and second order corrections for extended performance
- If the reading should exceed the predefined detector range, the instrument will flash a maximum reading and trigger an audio warning
The Model 3001 is a durable, lightweight instrument designed for alpha, beta, or gamma radiation survey. It can support up to four external detectors, each with its own set of calibration and user parameters. The instrument features a large, easy-to-read LCD screen and audible alarms and is controlled using a simple five-button interface. The unit body is made of high-impact plastic and splash resistant construction allows the instrument to be used outdoors.
Three modes of operation are available – RATE, MAX, and COUNT – which can be selected by pressing the MODE button. Measurements can be collected in two sets of units (primary and secondary) for RATE and MAX modes in cps, cpm, Bq, dpm, mR/hr, or μSv/h units. The user can switch between two sets of chosen units by pressing the UNITS button. The DETECTOR is used to switch between the active detector settings, indicated by the colored LEDs above the control buttons. When enabled with the optional Lumic Data Logger Kit (see Options), data can be logged in any of the operational modes using the LOG button on the handle. Up to 1000 data points can be stored internally.
Instrument setup can be done either through the front-panel controls of via the Lumic Calibration Kit (see Options). The Model 3001 is shipped ready to use with batteries and calibration certificate.
- Ludlum Measurements
- MODEL 3001
The Model 3001 is a durable, lightweight instrument designed for alpha, beta, or gamma radiation survey. It can support up to four external detectors, each with its own set of calibration and user parameters. The instrument features a large, easy-to-read LCD screen and audible alarms and is controlled using a simple five-button interface. The unit body is made of high-impact plastic and splash resistant construction allows the instrument to be used outdoors.
Three modes of operation are available – RATE, MAX, and COUNT – which can be selected by pressing the MODE button. Measurements can be collected in two sets of units (primary and secondary) for RATE and MAX modes in cps, cpm, Bq, dpm, mR/hr, or μSv/h units. The user can switch between two sets of chosen units by pressing the UNITS button. The DETECTOR is used to switch between the active detector settings, indicated by the colored LEDs above the control buttons. When enabled with the optional Lumic Data Logger Kit (see Options), data can be logged in any of the operational modes using the LOG button on the handle. Up to 1000 data points can be stored internally.
Instrument setup can be done either through the front-panel controls of via the Lumic Calibration Kit (see Options). The Model 3001 is shipped ready to use with batteries and calibration certificate.
- 4 selectable & configurable detector settings
- Large backlit lcd for ease of reading
- Lighter weight yet ruggedly built
- Linearity: within 10% of true value
- Rate, max, and count modes of operation
- Splash-resistant construction for outdoor use
- USB port
- 4-button intuitive interface for easy operation
- All-digital calibration
- Autoranging
- Backlight: Built-in ambient light sensor automatically activates LED backlight, unless internal dipswitch is set to continuous-On (will reduce battery life)
- Data logging: can store up to 1000 data points internally. Requires lumic data logger kit, see options
- Datalogging and headphone options
- Dead Time Correction: Employs first and second order corrections for extended performance
- If the reading should exceed the predefined detector range, the instrument will flash a maximum reading and trigger an audio warning
The Model 3001 is a durable, lightweight instrument designed for alpha, beta, or gamma radiation survey. It can support up to four external detectors, each with its own set of calibration and user parameters. The instrument features a large, easy-to-read LCD screen and audible alarms and is controlled using a simple five-button interface. The unit body is made of high-impact plastic and splash resistant construction allows the instrument to be used outdoors.
Three modes of operation are available – RATE, MAX, and COUNT – which can be selected by pressing the MODE button. Measurements can be collected in two sets of units (primary and secondary) for RATE and MAX modes in cps, cpm, Bq, dpm, mR/hr, or μSv/h units. The user can switch between two sets of chosen units by pressing the UNITS button. The DETECTOR is used to switch between the active detector settings, indicated by the colored LEDs above the control buttons. When enabled with the optional Lumic Data Logger Kit (see Options), data can be logged in any of the operational modes using the LOG button on the handle. Up to 1000 data points can be stored internally.
Instrument setup can be done either through the front-panel controls of via the Lumic Calibration Kit (see Options). The Model 3001 is shipped ready to use with batteries and calibration certificate.
- Ludlum Measurements
- MODEL 3001
