OEM#: 48-3514New OEM Original Outright
GAMMA NEUTRON SURVEY METER WITH MODEL 42-41 PRESCILA PROBE by Ludlum Measurements
0
OEM#: 48-3514GAMMA NEUTRON SURVEY METER WITH MODEL 42-41 PRESCILA PROBE by Ludlum Measurements
New OEM Original Outright
Asset Information
Shipment restricted to US and Canada
ADD TO LIST
Product Overview

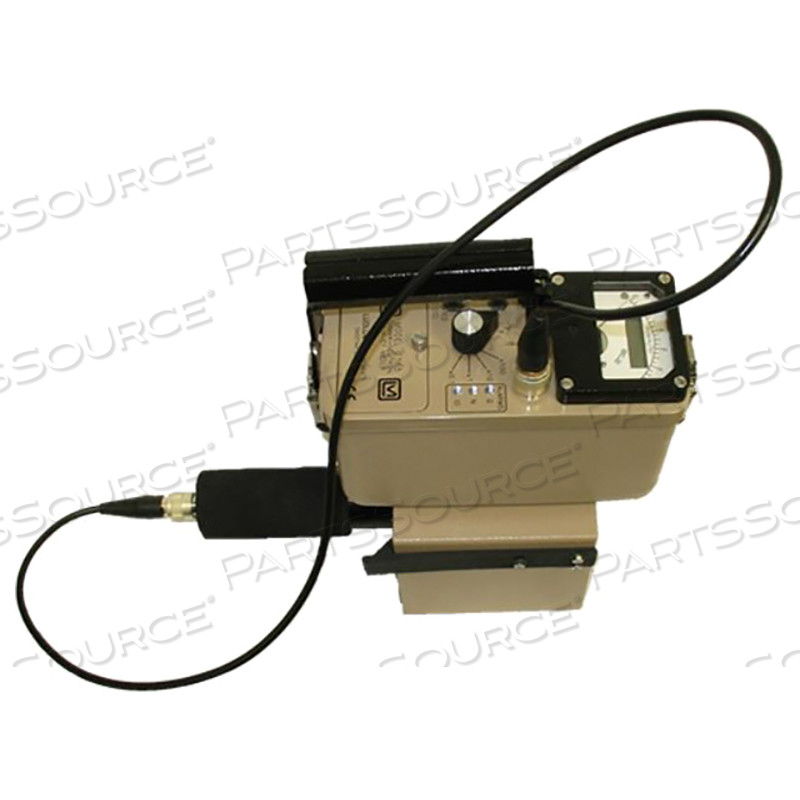

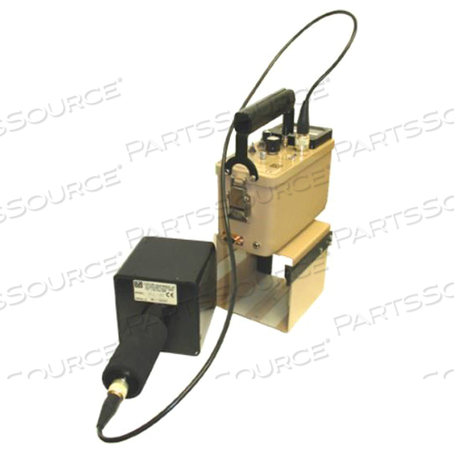

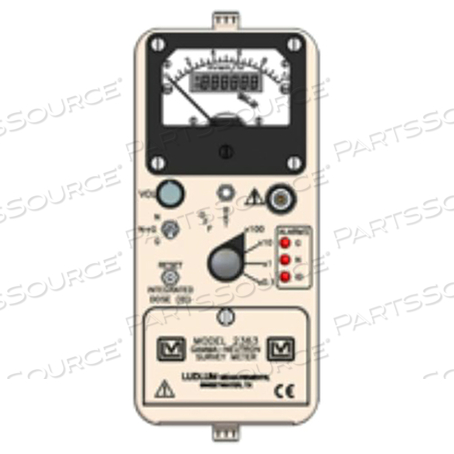

This gamma/neutron survey meter combines Ludlum Model 2363 survey meter with the Model 42-41L PRESCILA neutron detector. The gamma detector is an energy compensated GM housed internally to the survey meter. The neutron detector is a proton recoil type, which provides excellent measurement results at less weight than the more traditional REM balls. The neutron measurement has excellent gamma rejection up to 100 mR/hr
Features
- Light-weight Neutron Detection System
- Independent Gamma and Neutron Measurements
- Neutron Detection Range: 0.1 mrem/hr to 1 rem/hr
- Gamma Detection Range: 0.1 mR/hr to 1 R/hr
- Scaler and Data Logging Capabilities
Technical Specs
P/N: 48-3514 Key Specs
Item
GAMMA NEUTRON SURVEY METER WITH MODEL 42-41 PRESCILA PROBE
OEM
Ludlum Measurements
OEM #
48-3514
Condition
New OEM Original
Returnable
No
Warranty
12 Month
Audio
Greater than 60 dB at 61 cm 2 ft, full volume
Audio Divide
Selectable dual or individual click-per-event for gamma and neutron counts
Battery Life
Greater than 200 hours
Connector
Series "C"
Data Output
9-pin RS-232 port
Detection Range
External - 0.1 mrem/hr to 1 rem/h; Internal - 0.1 mR/hr to 1 R/hr
Digital Display
6-digit LCD with 0.64 cm (0.25 in.) digits
Gamma Rejection
Approximately 400 cpm at 100 mR/hr
Indicated Use
Gamma and neutron survey
Linearity
Reading within 10% of true value with detector connected
Logging Pushbutton
Located in the handle; used to store a reading
Meter
6.4 cm (2.5 in.) arc; 1 mA analog type
Meter Dial
0 - 10 mrem/hr, BAT OK
Multipliers
x0.1; x1; x10; x100
Neutron Energy Response
Thermal to 100 MeV
Overall Size
32.3 cm H x 13.7 cm W x 34.3 cm L
Package Quantity
1
Power
2 each "D" cell batteries
Reset/Read ID
A two-position momentary action switch that may be moved to select RESET the meter, or toward the READ ID position to read the integrated dose on the digital display
Response
2 to 11 s from 10% to 90% of final reading
Selector Switch
Toggle switch to select gamma + neutron, gamma only, or neutron only
Sensitivity
Neutron- 350 cpm per mrem/hr; Gamma - 1000 cpm per mR/hr
Weight
4.2 kg
Fitments
This gamma/neutron survey meter combines Ludlum Model 2363 survey meter with the Model 42-41L PRESCILA neutron detector. The gamma detector is an energy compensated GM housed internally to the survey meter. The neutron detector is a proton recoil type, which provides excellent measurement results at less weight than the more traditional REM balls. The neutron measurement has excellent gamma rejection up to 100 mR/hr
- Ludlum Measurements
- MODEL 2363
