OEM#: 331New OEM Original Outright

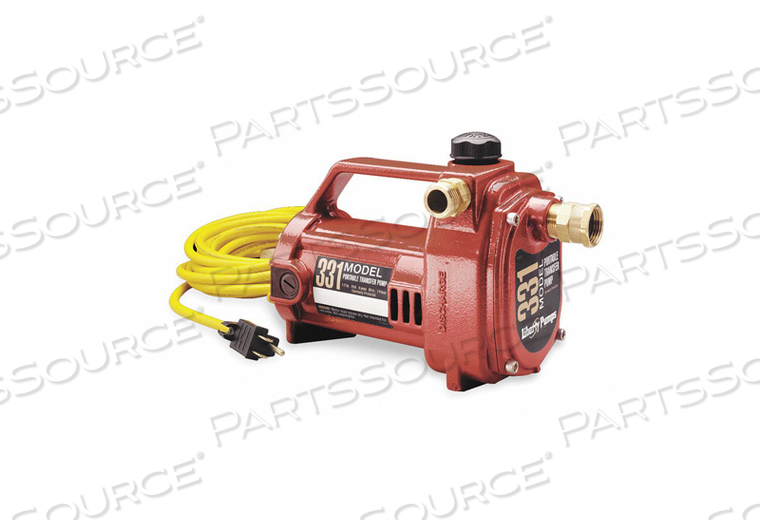

UTILITY PUMP, PHASE SINGLE, PUMP HOUSING MATERIAL ALUMINUM, HORSEPOWER 1/2 HP, NAMEPLATE VOLTAGE 115V AC, FLOW RATE @ 40 FT OF HEAD (MAXIMUM by Liberty Pumps

Your price:
$406.00 eachReady to ship
HomeLiberty Pumps331
UTILITY PUMP, PHASE SINGLE, PUMP HOUSING MATERIAL ALUMINUM, HORSEPOWER 1/2 HP, NAMEPLATE VOLTAGE 115V AC, FLOW RATE @ 40 FT OF HEAD (MAXIMUM by Liberty Pumps
UTILITY PUMP, PHASE SINGLE, PUMP HOUSING MATERIAL ALUMINUM, HORSEPOWER 1/2 HP, NAMEPLATE VOLTAGE 115V AC, FLOW RATE @ 40 FT OF HEAD (MAXIMUM by Liberty Pumps

OEM#: 331
UTILITY PUMP, PHASE SINGLE, PUMP HOUSING MATERIAL ALUMINUM, HORSEPOWER 1/2 HP, NAMEPLATE VOLTAGE 115V AC, FLOW RATE @ 40 FT OF HEAD (MAXIMUM by Liberty Pumps

New OEM Original Outright
Your price:
$406.00 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 331 Key Specs
Item
UTILITY PUMP, PHASE SINGLE, PUMP HOUSING MATERIAL ALUMINUM, HORSEPOWER 1/2 HP, NAMEPLATE VOLTAGE 115V AC, FLOW RATE @ 40 FT OF HEAD (MAXIMUM
OEM
Liberty Pumps
OEM #
331
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Agency Compliance
CSA
Amps
8 A
Bearing Type
Ball
Best Efficiency Range GPM @ Head
9 to 13 gpm @ 48 to 71 ft
Duty
Intermittent
GPH of Water @ 10 PSI
1,091
GPH of Water @ 15 PSI
936
GPH of Water @ 20 PSI
793
GPH of Water @ 25 PSI
654
GPH of Water @ 30 PSI
504
GPH of Water @ 35 PSI
342
GPH of Water @ 40 PSI
180
GPH of Water @ 5 PSI
1,222
GPM of Water @ 1 feet of Head
24
GPM of Water @ 10 feet of Head
22
GPM of Water @ 15 feet of Head
21
GPM of Water @ 20 feet of Head
19
GPM of Water @ 25 feet of Head
18
GPM of Water @ 30 feet of Head
17
GPM of Water @ 35 feet of Head
16
GPM of Water @ 40 feet of Head
15
GPM of Water @ 5 feet of Head
23
GPM of Water @ 50 feet of Head
13
GPM of Water @ 60 feet of Head
11
GPM of Water @ 70 feet of Head
8
GPM of Water @ 80 feet of Head
6.5
GPM of Water @ 90 feet of Head
4
HP
1/2 hp
Height
7 in
Housing Material
Cast Aluminum
Hz
60
Impeller Material
Thermoplastic
Impeller Type
Open
Includes
3/4 in OD Brass Garden Hose Connectors and Plastic Suction Screen
Inlet
3/4 in GHT
Inlet Pressure
60 psi
Length
9-3/4 in
Max Case Pressure
100 psi
Max Diameter Solids
1/8 in
Max Head
105 ft
Max Liquid Temperature
135 Degrees F
Max Pressure
40 psi
Max Specific Gravity
1
Motor Enclosure
Nema Type 3
Motor Type
AC/DC Brush
Outlet
3/4 in GHT
Phase
1
Seal Material
Carbon/Ceramic Buna N
Suction Lift
15 ft
Voltage
115
Wetted Materials
Brass, Cast Aluminum, Stainless Steel, Thermoplastic
Width
4-1/2 in
