OEM#: 4Y37A78602New OEM Original Outright
THINKSYSTEM 440-16I, STORAGE CONTROLLER, 16 CHANNEL, SATA 6GB/S / SAS 12GB/S, LOW PROFILE, PCIE 4.0 X8, FOR THINKSYSTEM SR630 V2, SR63X, SR6 by Lenovo
Your price:
$2,003.92 each
OEM#: 4Y37A78602THINKSYSTEM 440-16I, STORAGE CONTROLLER, 16 CHANNEL, SATA 6GB/S / SAS 12GB/S, LOW PROFILE, PCIE 4.0 X8, FOR THINKSYSTEM SR630 V2, SR63X, SR6 by Lenovo
New OEM Original Outright
Your price:
$2,003.92 each
Lenovo ThinkSystem 440-16i - storage controller - SATA 6Gb/s / SAS 12Gb/s - PCIe 4.0 x8
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Product Overview

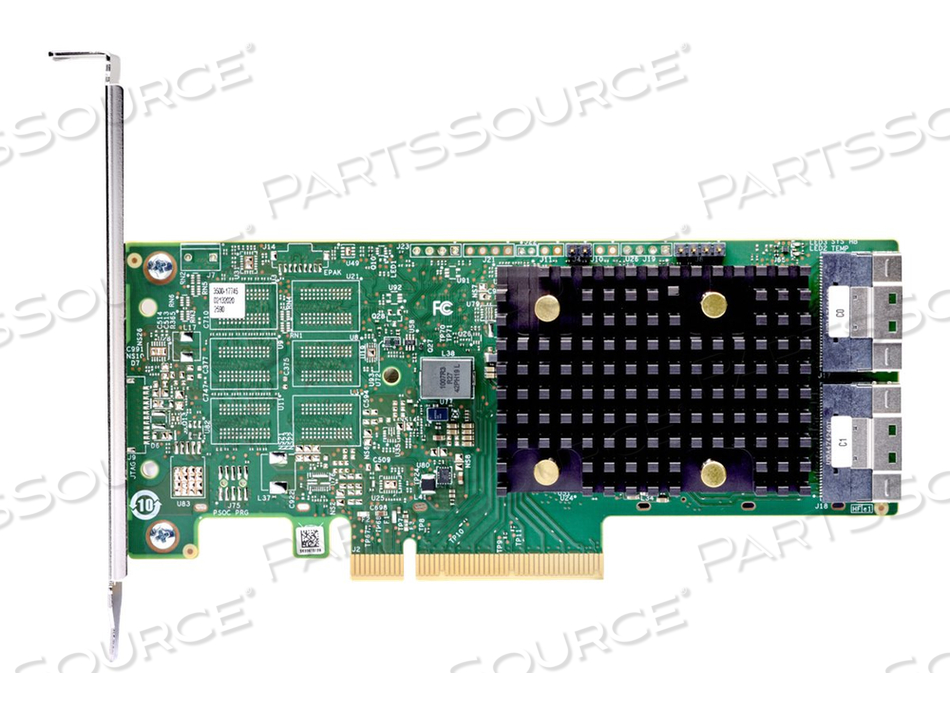

The ThinkSystem 440-16i SAS/SATA PCIe Gen4 12Gb Internal HBA is a high performance PCIe 4.0 host bus adapters for internal storage connectivity in ThinkSystem servers. It integrates the latest enhancements SAS technology and offer 16 lanes of 12 Gbps SAS. With a custom compact form-factor design, this adapters is designed to be cabled to an onboard PCIe 4.0 x8 port on the server and not occupy a standard PCIe slot.
Features
- PCIe 4.0 x8 host interface
- Optimized for SSD performance
- 12 Gbps SAS/SATA host bus adapter, based on the Broadcom SAS3816 IOC design
- Custom form-factor, designed to not consume a standard PCIe slot
- 16x 12 Gbps SAS/SATA ports for connectivity to 16 internal drives
- Up to 12 Gbps throughput per port
- One x8 HD Mini-SAS connector to the host (SFF-8654 x8)
- Four x4 HD Mini-SAS connectors to backplanes (SFF-8654 x4)
- Non-RAID (JBOD mode) support for SAS and SATA HDDs and SSDs (RAID not supported)
- Support internal SAS tape drives
Technical Specs
P/N: 4Y37A78602 Key Specs
Item
THINKSYSTEM 440-16I, STORAGE CONTROLLER, 16 CHANNEL, SATA 6GB/S / SAS 12GB/S, LOW PROFILE, PCIE 4.0 X8, FOR THINKSYSTEM SR630 V2, SR63X, SR6
OEM
Lenovo
OEM #
4Y37A78602
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Bus Type
PCIe 4.0 x8
Channel Qty
16
Data Transfer Rate
12 Gbit/s
Designed For
ThinkSystem SR250; SR530; SR550; SR570; SR590; SR630; SR630 V2; SR635; SR645; SR650; SR650 V2; SR655; SR665; SR850; SR850 V2; SR850P; SR860; SR860 V2; SR950; ST250; ST550
Device Type
Storage controller - plug-in card - low profile
Interface
SATA 6Gb/s / SAS 12Gb/s
Max Storage Devices Qty
16
Supported Devices
Hard drive, solid state drive
The ThinkSystem 440-16i SAS/SATA PCIe Gen4 12Gb Internal HBA is a high performance PCIe 4.0 host bus adapters for internal storage connectivity in ThinkSystem servers. It integrates the latest enhancements SAS technology and offer 16 lanes of 12 Gbps SAS. With a custom compact form-factor design, this adapters is designed to be cabled to an onboard PCIe 4.0 x8 port on the server and not occupy a standard PCIe slot.
