OEM#: 191419.00New OEM Original Outright

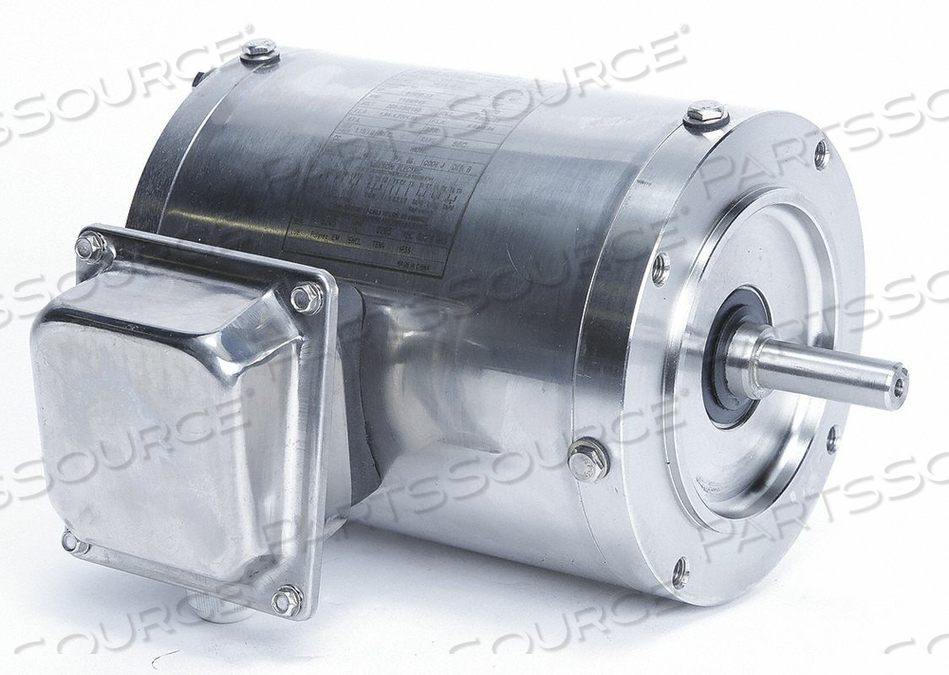

MOTOR 1/2 HP 1140 56C 208-230/460V by Leeson

Your price:
$1,674.29 eachReady to ship
HomeLeeson19141900
MOTOR 1/2 HP 1140 56C 208-230/460V by Leeson
MOTOR 1/2 HP 1140 56C 208-230/460V by Leeson

OEM#: 191419.00
MOTOR 1/2 HP 1140 56C 208-230/460V by Leeson

New OEM Original Outright
Your price:
$1,674.29 each
Ready to ship
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 191419.00 Key Specs
Item
MOTOR 1/2 HP 1140 56C 208-230/460V
OEM
Leeson
OEM #
191419.00
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Country of Origin
China
Frame
56
Full Load Amps
2/1
HP
1/2
Hz
60/50
Ins. Class
F
Length Less Shaft
8-1/2 in
Max Ambient Temperature
40 Degrees C
Motor Application
Washdown
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
Standard Efficient
Motor Enclosure Design
Totally Enclosed Nonventilated
Motor Frame Material
Stainless Steel
Motor Mounting Type
Face
Motor Service Factor
1.15
Motor Shaft Rotation
CWSE
Motor Thermal Protection
None
Nameplate RPM
1140
Nominal Efficiency
80 %
Phase
3
RPM Range
1101-1200
Shaft Diameter
5/8 in
Shaft Length
1-7/8 in
Voltage
230/460
Voltage Compatibility
208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460
