OEM#: 114319.00New OEM Original Outright

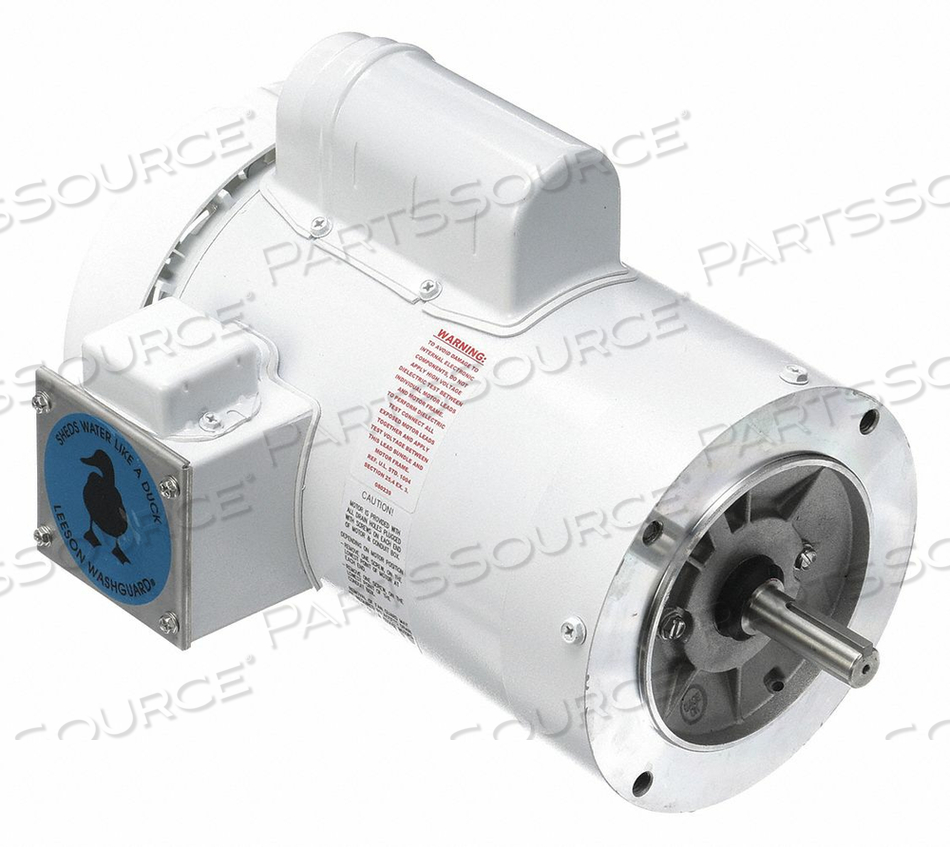

MOTOR 1 1/2 HP 1725 56C 115/208-230V by Leeson
Your price:
$1,586.23 each
OEM#: 114319.00MOTOR 1 1/2 HP 1725 56C 115/208-230V by Leeson
New OEM Original Outright
Your price:
$1,586.23 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 114319.00 Key Specs
Item
MOTOR 1 1/2 HP 1725 56C 115/208-230V
OEM
Leeson
OEM #
114319.00
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
Washguard
Body Diameter
7 25/64 in
Conduit Box
Split Clam Shell with Rubber Gasket
Country of Origin
USA
Drain Plugs
(4) Each End, (2) In Conduit Box
Duty
Continuous
Endshields
Cast Aluminum
Frame
56C
Full Load Amps
19/9.5
HP
1-1/2
Hz
60
Includes
Splice Kit
Ins. Class
F
Length Less Shaft
11-7/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
Washdown
Motor Bearings
Ball
Motor Design
Capacitor-Start
Motor Efficiency Group
Standard Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Face
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CWSE
Motor Thermal Protection
None
NEMA Design
B
Nameplate RPM
1725
Nominal Efficiency
71 %
Overall Length
13-3/8 in
Phase
1
RPM Range
1701-1800
Shaft Diameter
5/8 in
Shaft Length
1-15/16 in
Shaft Material
303 Stainless Steel
Standards
CSA(LR2025), UL(E49747)
Voltage
115/230
Voltage Compatibility
115, 115/230, 120, 120/240, 230, 240
