OEM#: 110089.00New OEM Original Outright

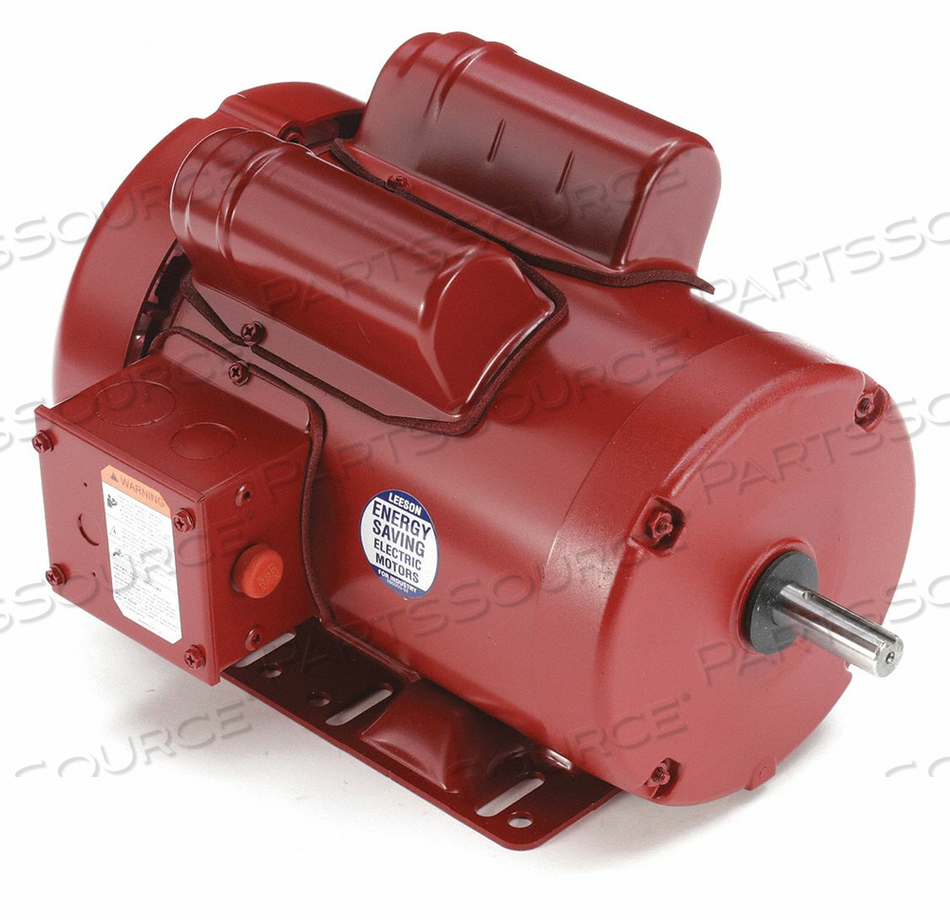

GENERAL PURPOSE FARM DUTY MOTOR 1-1/2 HP by Leeson
Your price:
$1,017.52 each
OEM#: 110089.00GENERAL PURPOSE FARM DUTY MOTOR 1-1/2 HP by Leeson
New OEM Original Outright
Your price:
$1,017.52 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: 110089.00 Key Specs
Item
GENERAL PURPOSE FARM DUTY MOTOR 1-1/2 HP
OEM
Leeson
OEM #
110089.00
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Country of Origin
USA
Duty
Continuous
Finish
Enamel
Frame
56H
Full Load Amps
17.2/8.6
HP
1-1/2
Hz
60
Ins. Class
F
Item - Farm Duty Motors
High Torque Farm Duty Motor
Length Less Shaft
11 1/16 in
Max Ambient Temperature
40 Degrees C
Motor Application
Farm Duty
Motor Bearings
Ball
Motor Design
Capacitor-Start/Run
Motor Efficiency Group
Standard Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CWSE
Motor Sub Application
High Torque
Motor Thermal Protection
Manual
Nameplate RPM
1725
Nominal Efficiency
79 %
Overall Length
13 in
Phase
1
Shaft Diameter
5/8 in
Shaft Length
1-15/16 in
Standards
CSA (LR2025), UL (E49747)
Voltage
115/230
Voltage Compatibility
115, 115/230, 120, 120/240, 230, 240
